MSR-YADL Series Downlight
BestDescription

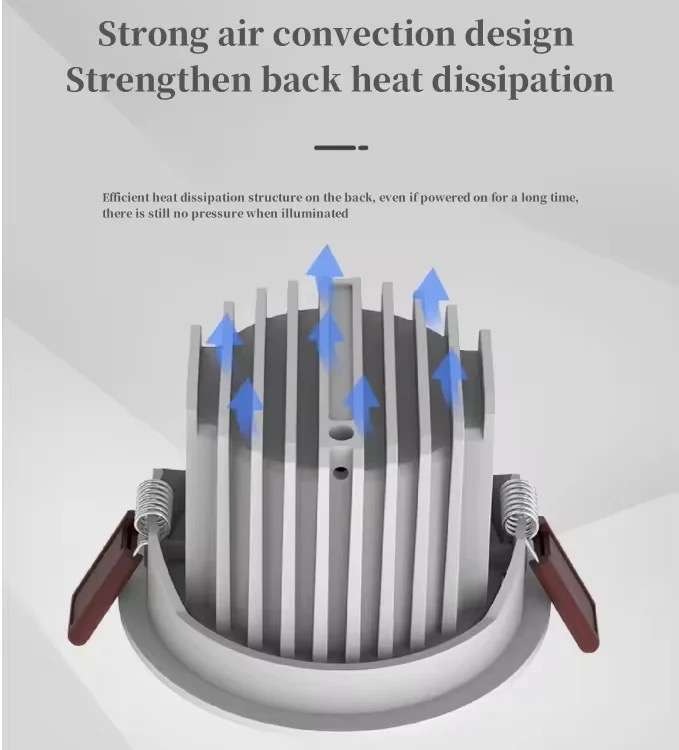

• Die-cast aluminum housing with excellent thermal dissipation.
• 1 /2 /3/ 4 heads for optional.

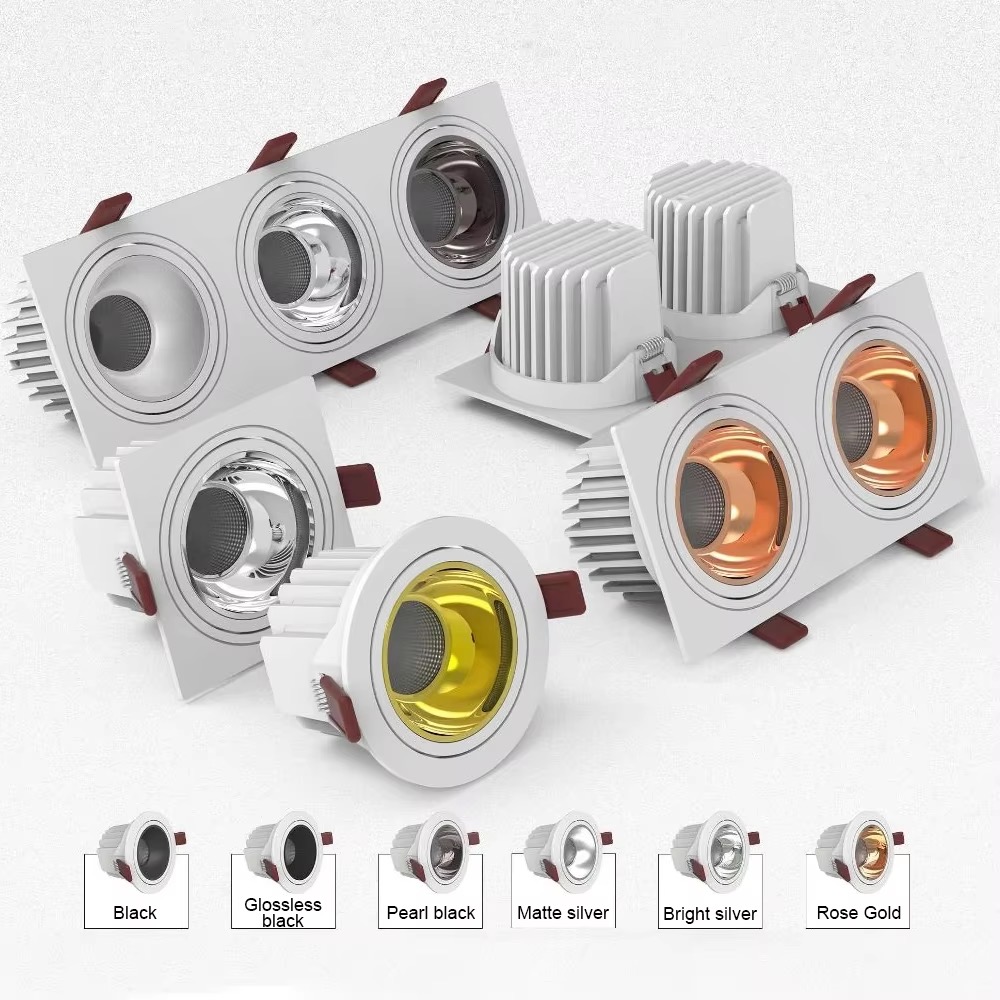

• 6 colors reflector for optional .
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
• 1 /2 /3/ 4 heads for optional.
• 6 colors reflector for optional .
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
- Description
• Die-cast aluminum housing with excellent thermal dissipation.
• 1 /2 /3/ 4 heads for optional.
• 6 colors reflector for optional .
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-YADL92-S10W | 10W | 15°/30°/45° | >80 | Ø75x75mm | Ø92x92x59mm | 900LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL92-S10W*2 | 20W | 15°/30°/45° | >80 | Ø160x75mm | Ø175x92x59mm | 1800LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL92-S10W*3 | 30W | 15°/30°/45° | >80 | Ø250x75mm | Ø258x92x59mm | 2700LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL120-S18W | 18W | 15°/30°/45° | >80 | Ø95x95mm | Ø120x120x71mm | 1620LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL120-S18W*2 | 36W | 15°/30°/45° | >80 | Ø205x95mm | Ø228x120x71mm | 3240LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL120-S18W*3 | 54W | 15°/30°/45° | >80 | Ø310x95mm | Ø332x120x71mm | 4860LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL139-S25W | 25W | 15°/30°/45° | >80 | Ø120*120mm | Ø139x139x86mm | 2250LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL139-S25W*2 | 50W | 15°/30°/45° | >80 | Ø255x120mm | Ø270x139x86mm | 4000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-YADL139-S25W*3 | 75W | 15°/30°/45° | >80 | Ø380x120mm | Ø400x139x86mm | 6750LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
