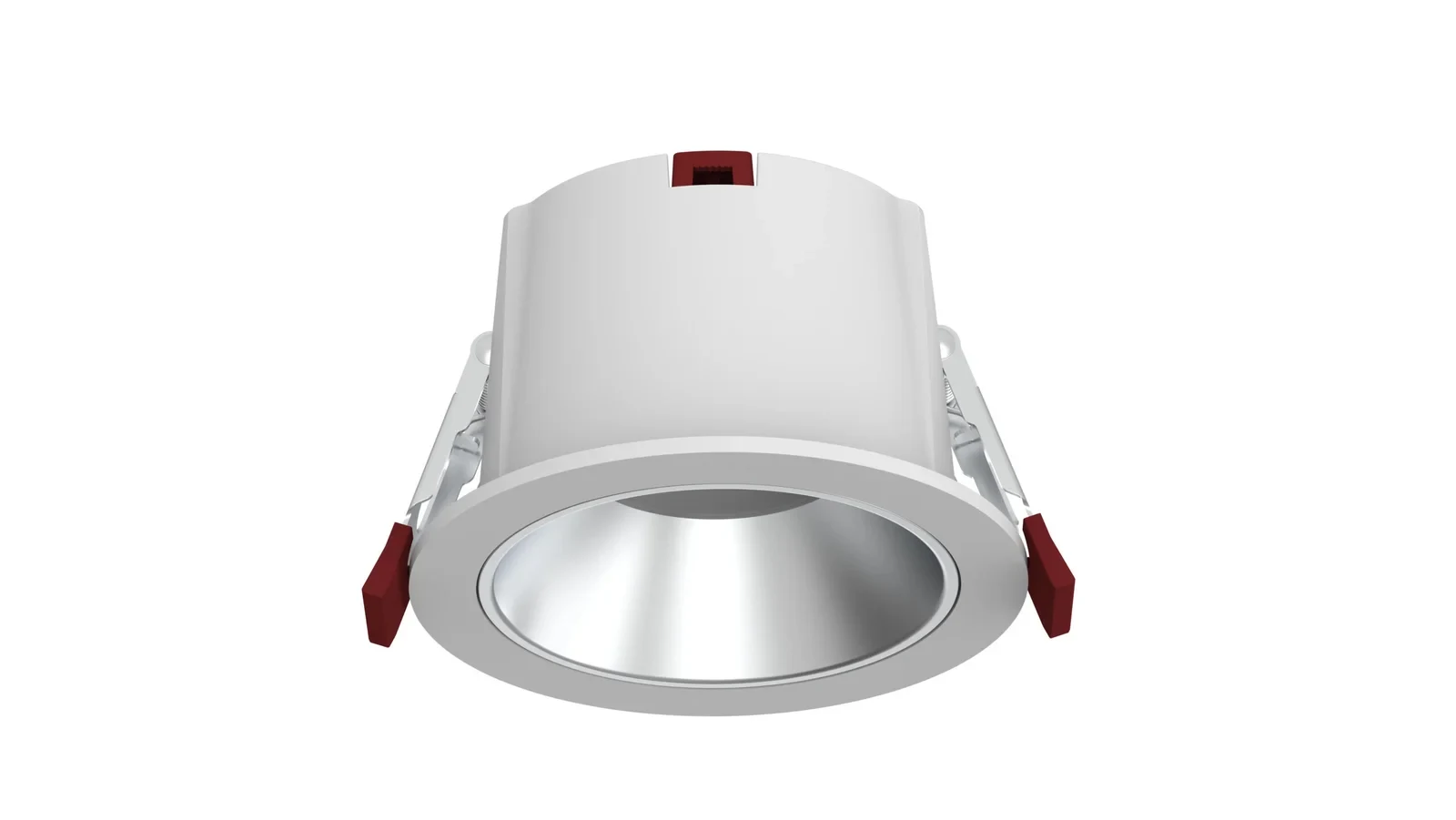

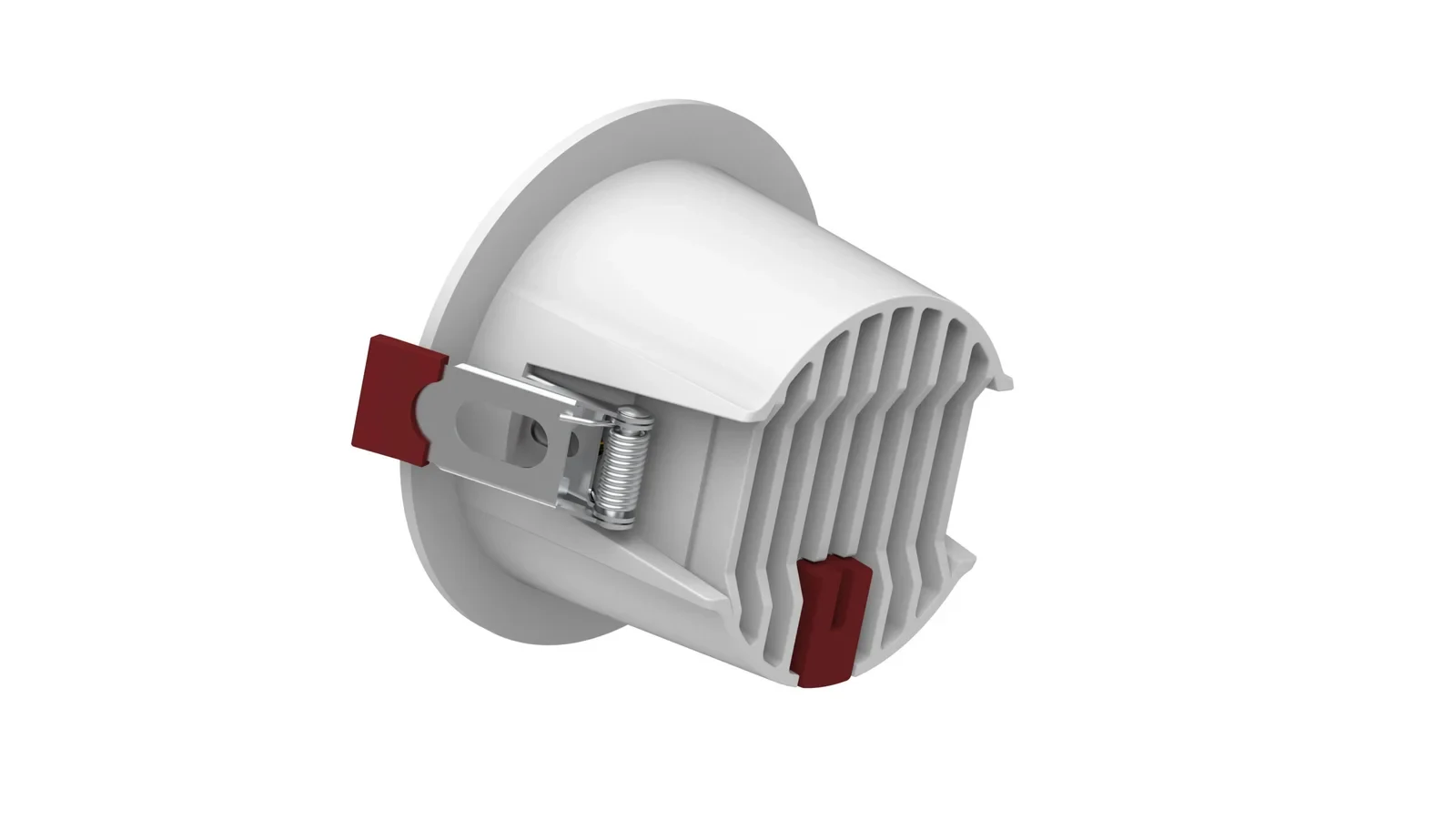

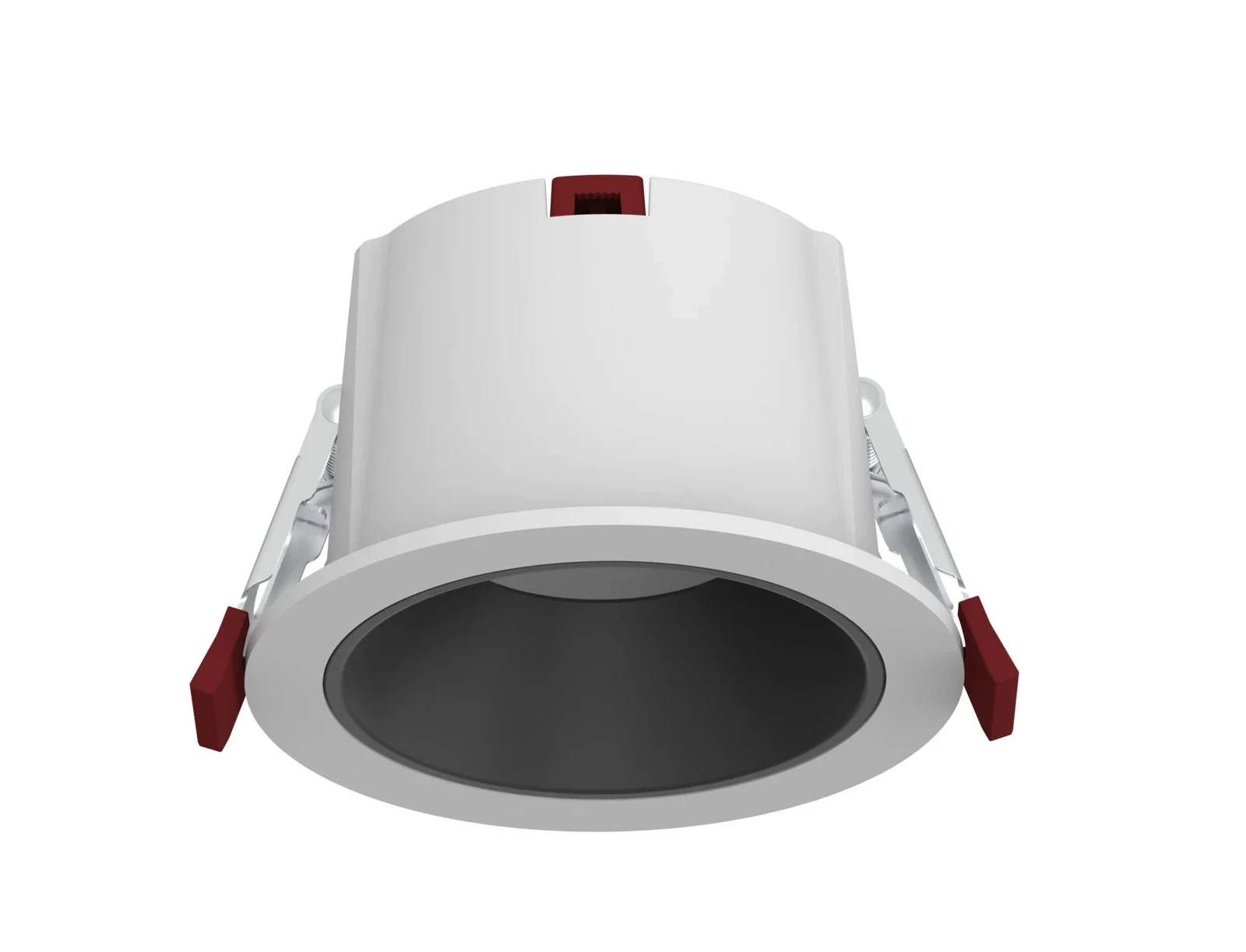

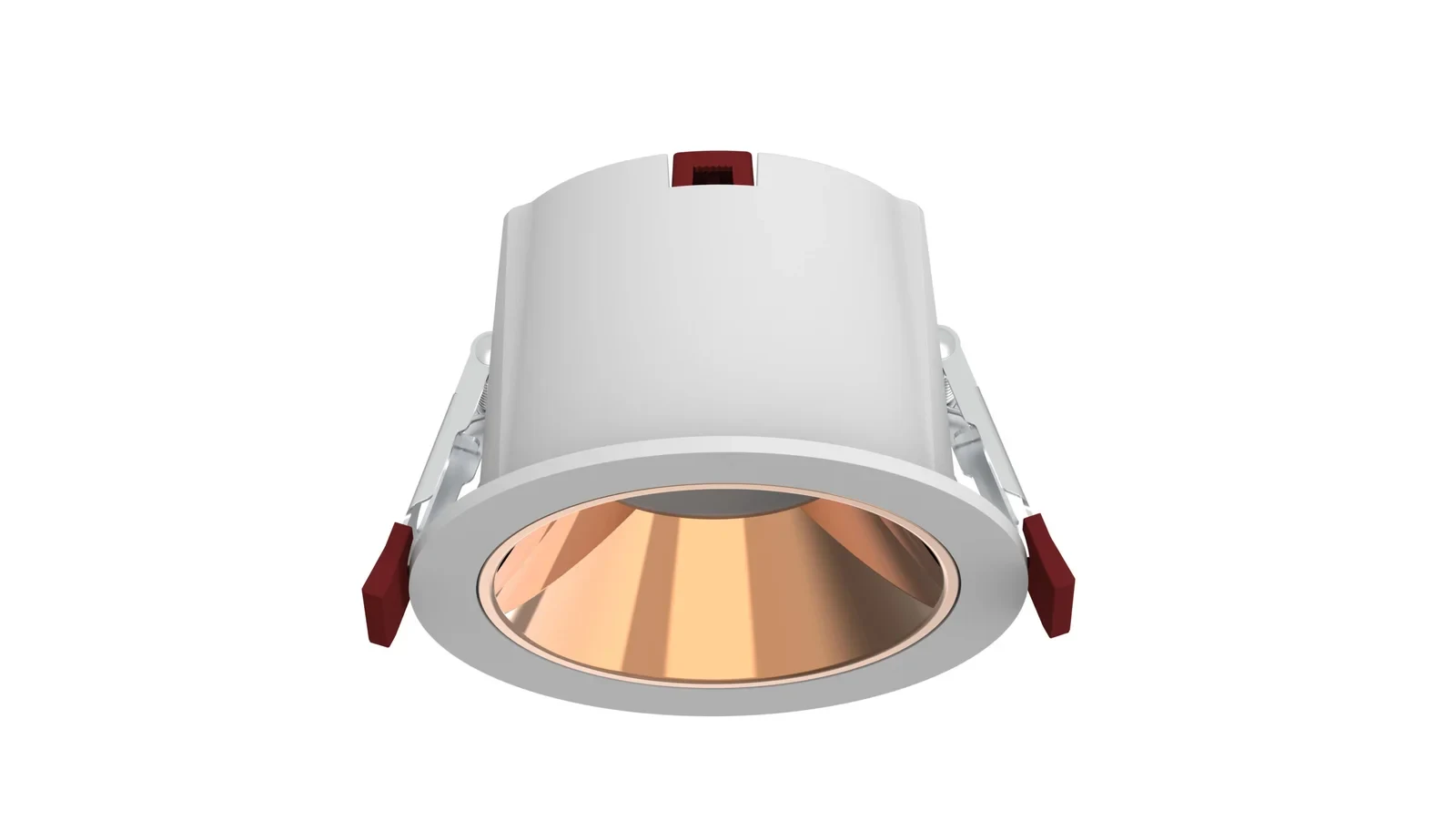

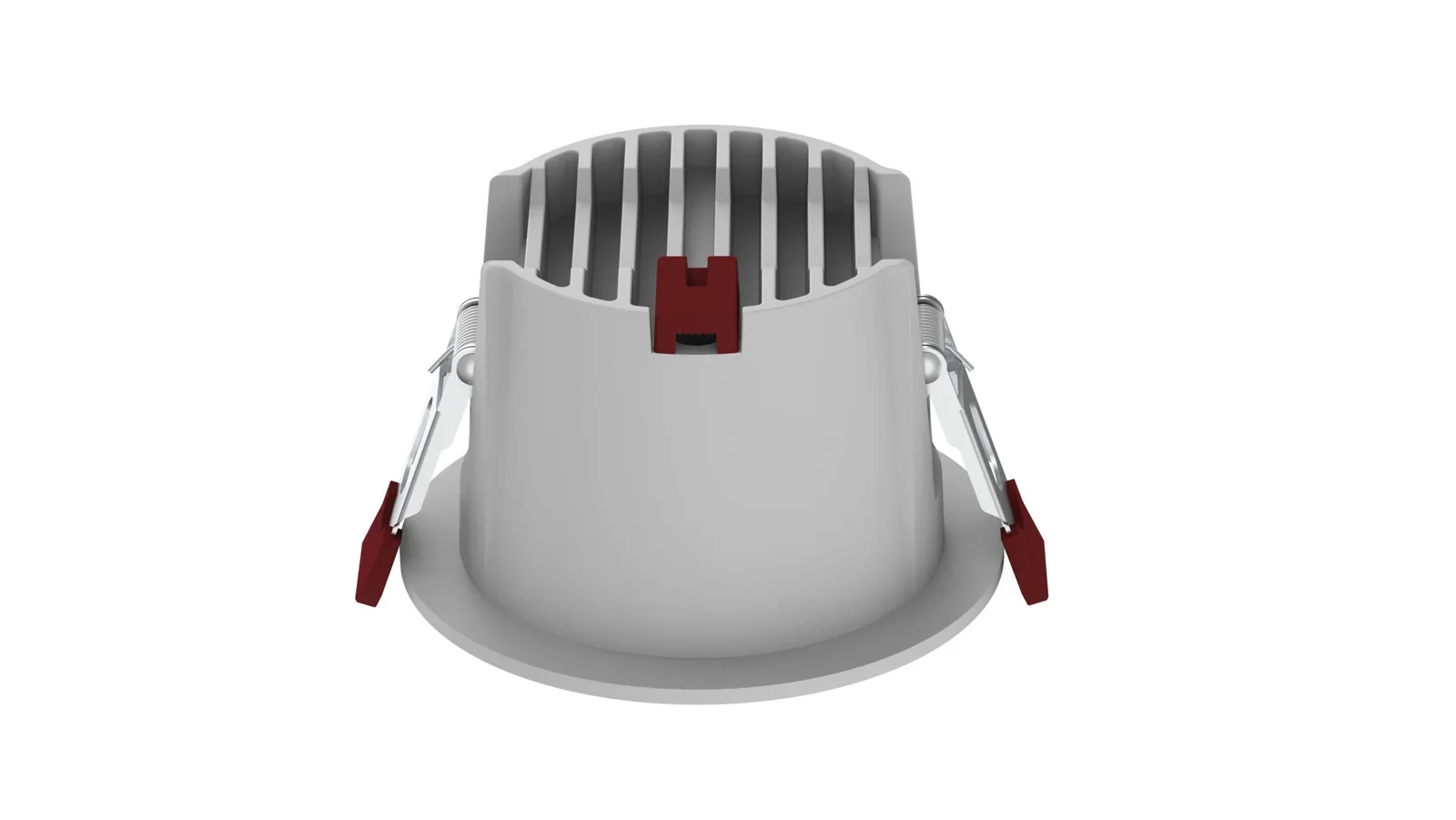

MSR-NDL Series Downlight
BestDescription

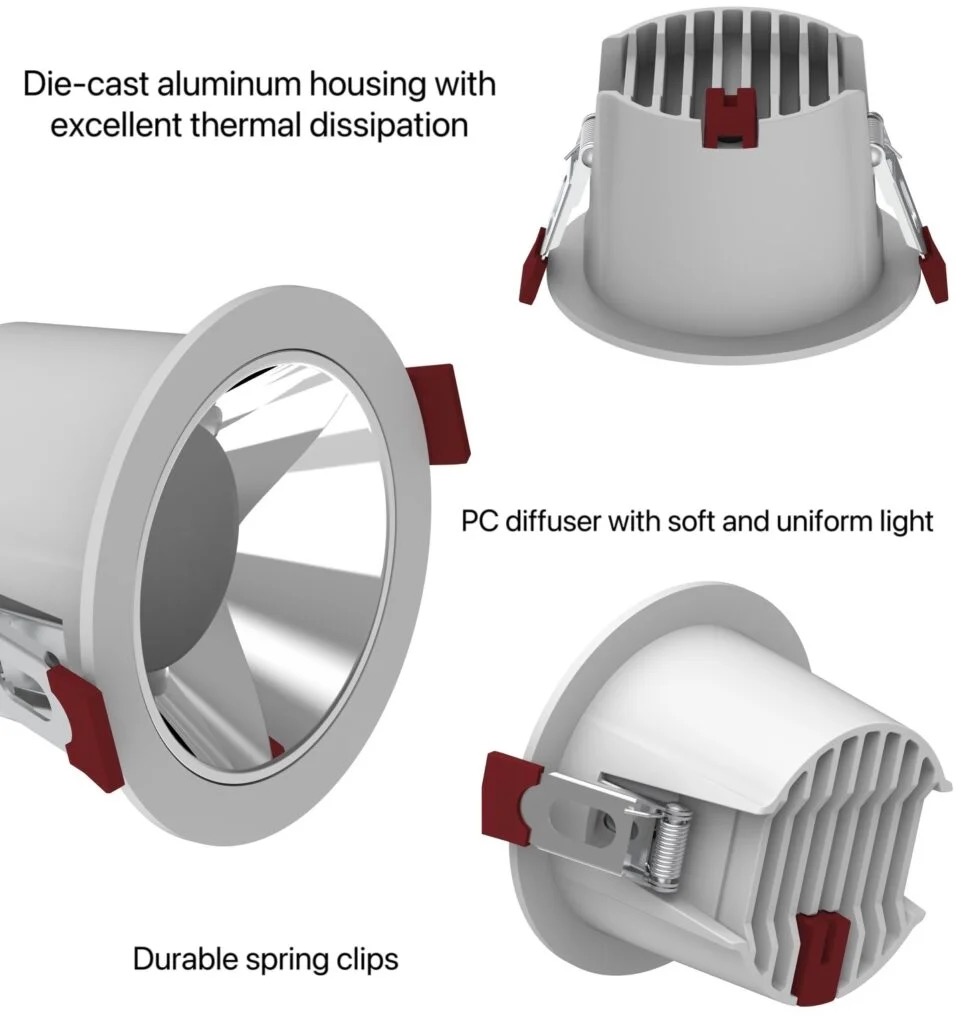

• Die-cast aluminum housing with excellent thermal dissipation.
• 3CCT Switchable WW-NW-CW.

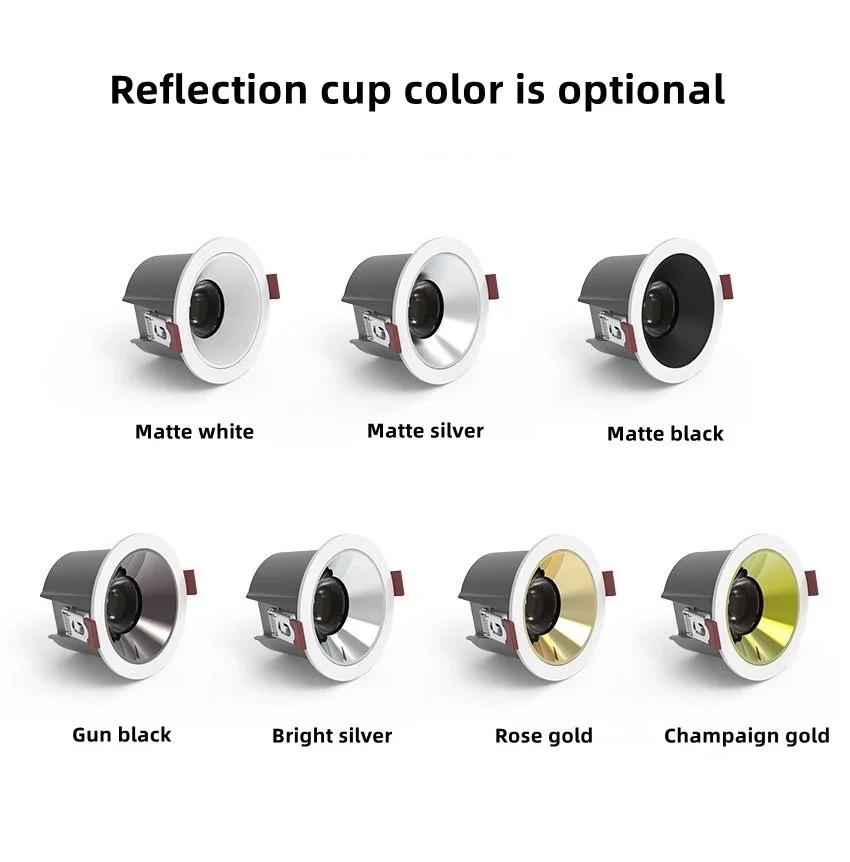

• 6 colors reflector for optional .
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
• 3CCT Switchable WW-NW-CW.
• 6 colors reflector for optional .
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
- Description
• Die-cast aluminum housing with excellent thermal dissipation.
• 3CCT Switchable WW-NW-CW.
• 6 colors reflector for optional .
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.

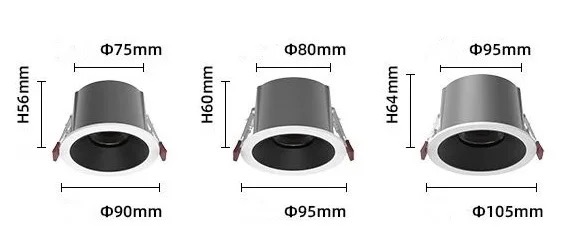

| Model | Watt | Beam angle | CRI | Cutout | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-NDL55-S5W | 5W | 100° | >80 | Ø55mm | 60x35mm | 500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL75-S10W | 10W | 100° | >80 | Ø75mm | 85x45mm | 1000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL80-S12W | 12W | 100° | >80 | Ø80mm | 90x47mm | 1200LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL95-S15W | 15W | 100° | >80 | Ø95mm | 105x50mm | 1500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL120-S20W | 20W | 100° | >80 | Ø120mm | 130x52mm | 2000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL145-S25W | 25W | 100° | >80 | Ø145mm | 160x160mm | 2500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL160-S35W | 35W | 100° | >80 | 160mm | 175x63mm | 3500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL200-S40W | 40W | 100° | >80 | 200mm | 175x63mm | 4000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL200-S50W | 50W | 100° | >80 | 200mm | 175x63mm | 5000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-NDL200-S60W | 60W | 100° | >80 | 200mm | 175x63mm | 6000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
