MSR-MDL Series Downlight

Best
Description

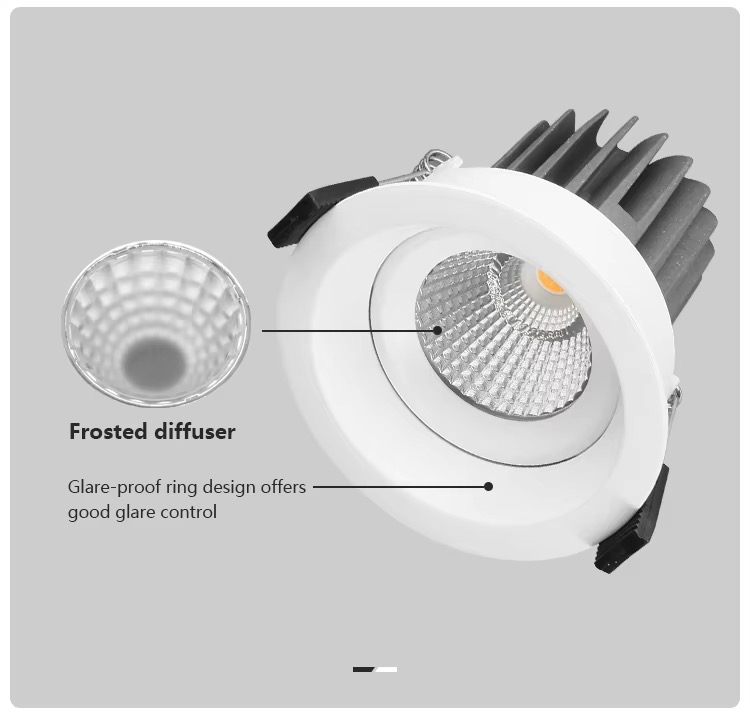

• Special optical design: Secondary optical design with lens design which provide soft and anti-glare light.
• 3CCT Switchable WW-NW-CW.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
  • Description

  • Special optical design: Secondary optical design with lens design which provide soft and anti-glare light.

  • 3CCT Switchable WW-NW-CW.

  • Dimming way: non-dim, triac dim, 0-10V,DALI.

  • External flickering free driver.

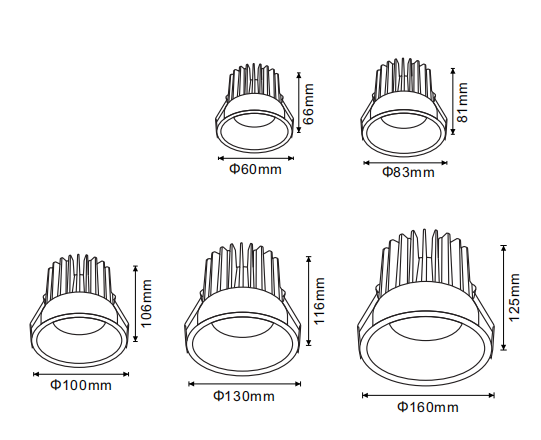

ModelWattBeam angleCRICutoutSize(mm)Lumen(±10%)Light SourceDriver
MSR-MDL03-C5W5W12°/ 24°/36°>80Φ55mm60x66mm450LMEPISTAR
OSRAM		LIFUD
PHILIPS
OSRAM
MSR-MDL04-C7W7W12°/ 24°/36°>80Φ75mm83x81mm630LMEPISTAR
OSRAM		LIFUD
PHILIPS
OSRAM
MSR-MDL05-C12W12W12°/ 24°/36°>80Φ90mm100x106mm1080LMEPISTAR
OSRAM		LIFUD
PHILIPS
OSRAM
MSR-MDL06-C20W20W12°/ 24°/36°>80Φ116mm130x116mm1800LMEPISTAR
OSRAM		LIFUD
PHILIPS
OSRAM
MSR-MDL07-C30W30W12°/ 24°/36°>80Φ145mm160x125mm2700LMEPISTAR
OSRAM		LIFUD
PHILIPS
OSRAM
