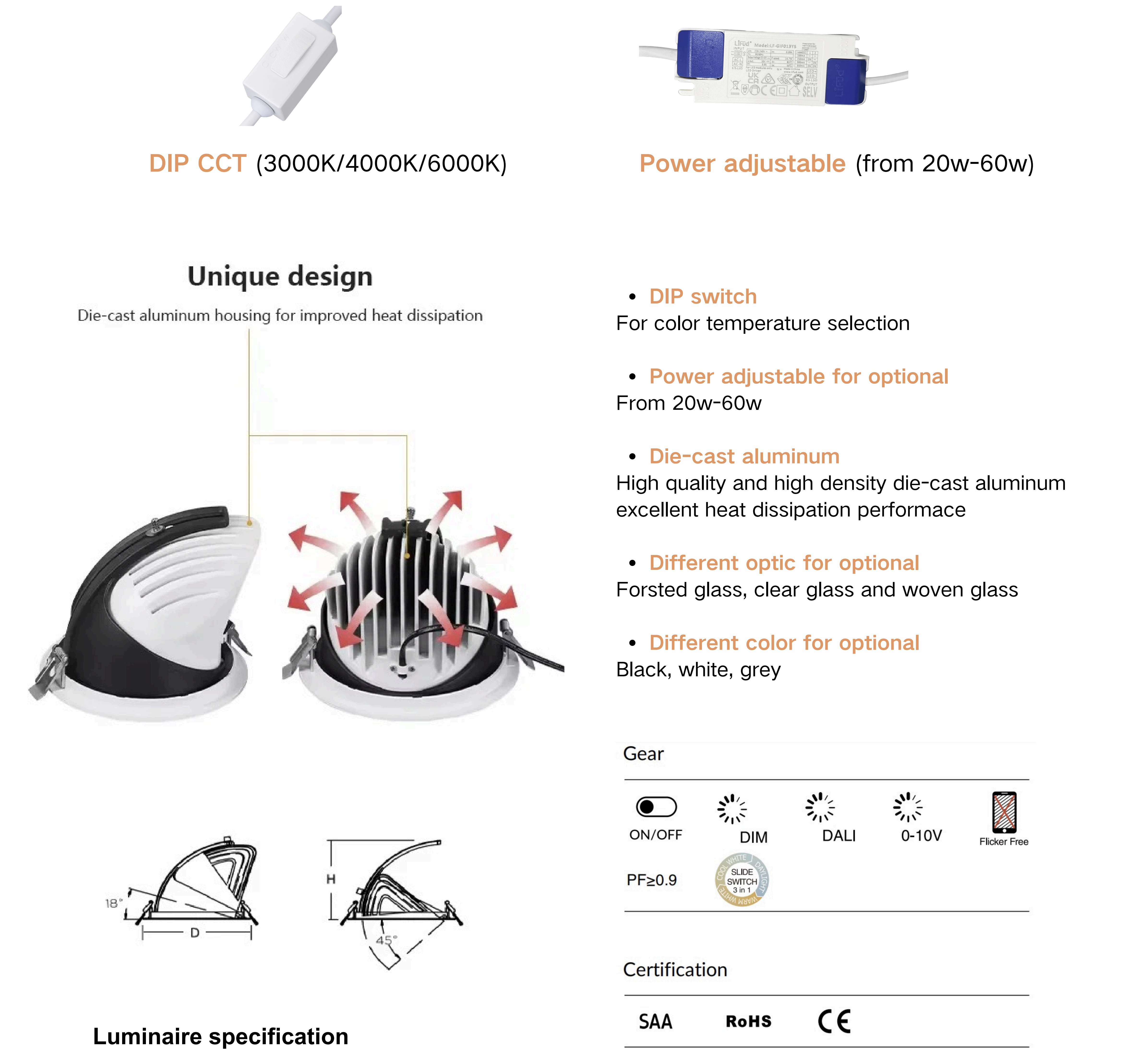

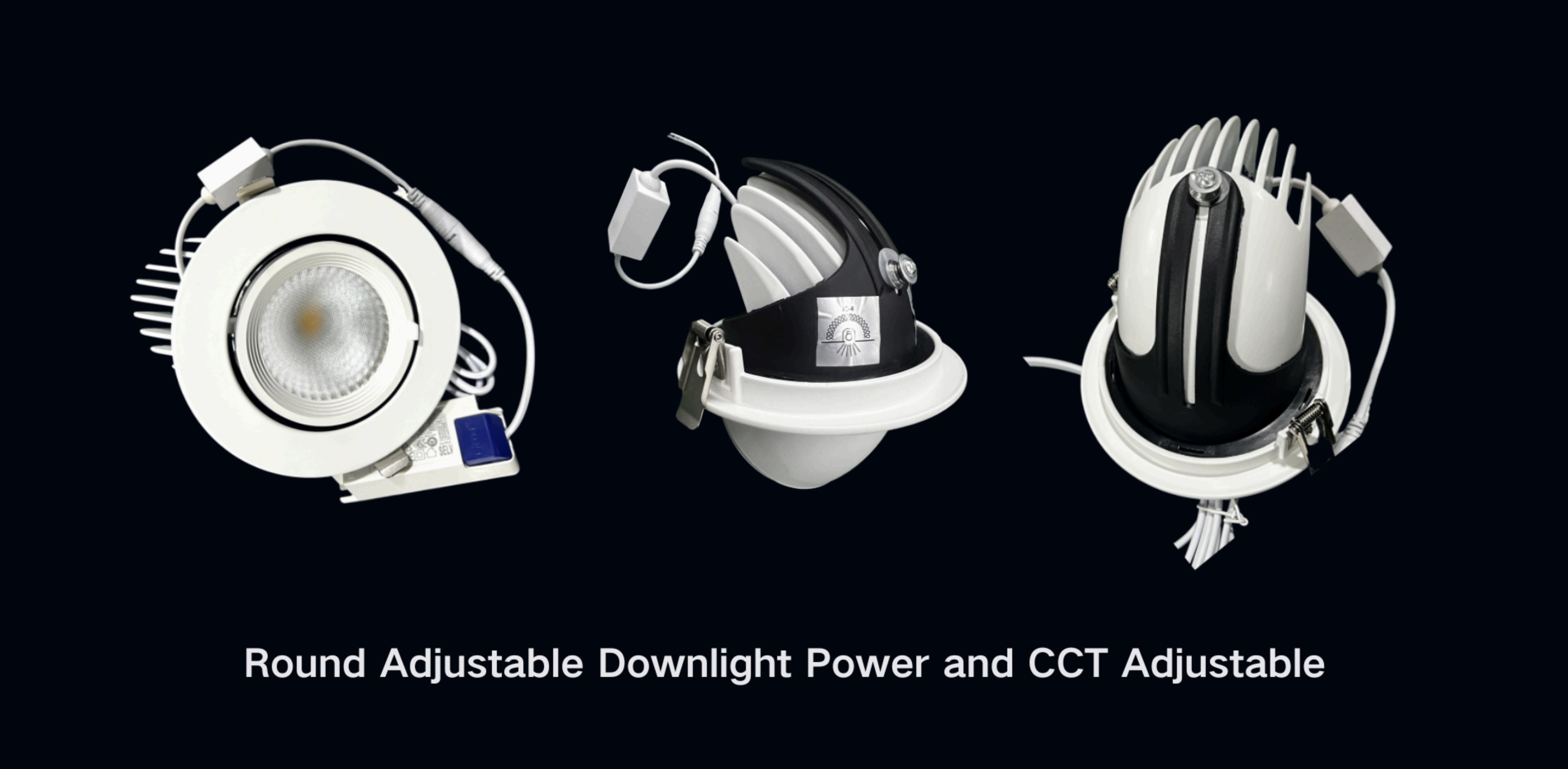

MSR-LBDL Series Adjustable Downlight
BestDescription
• 3CCT Switchable WW-NW-CW.
• Completed wattage 10W 15W 24W 30W 40W50W.
• Power changeable from 10W to 50W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
• Completed wattage 10W 15W 24W 30W 40W50W.
• Power changeable from 10W to 50W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
- Description
• 3CCT Switchable WW-NW-CW.
• Completed wattage 10W-38W.
• Power changeable from 10W to 38W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout Size(mm) | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-LBDL120-8W&10W&12W&15W | 8W&10W&12W&15W | 60° | >90 | 120mm | 135x115mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-LBDL175-17W&20W&25W&28W | 17W&20W&25W&28W | 60° | >90 | 175mm | 190x160mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-LBDL175-30W&33W&36W&38W | 30W&33W&36W&38W | 60° | >90 | 175mm | 190x160mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
