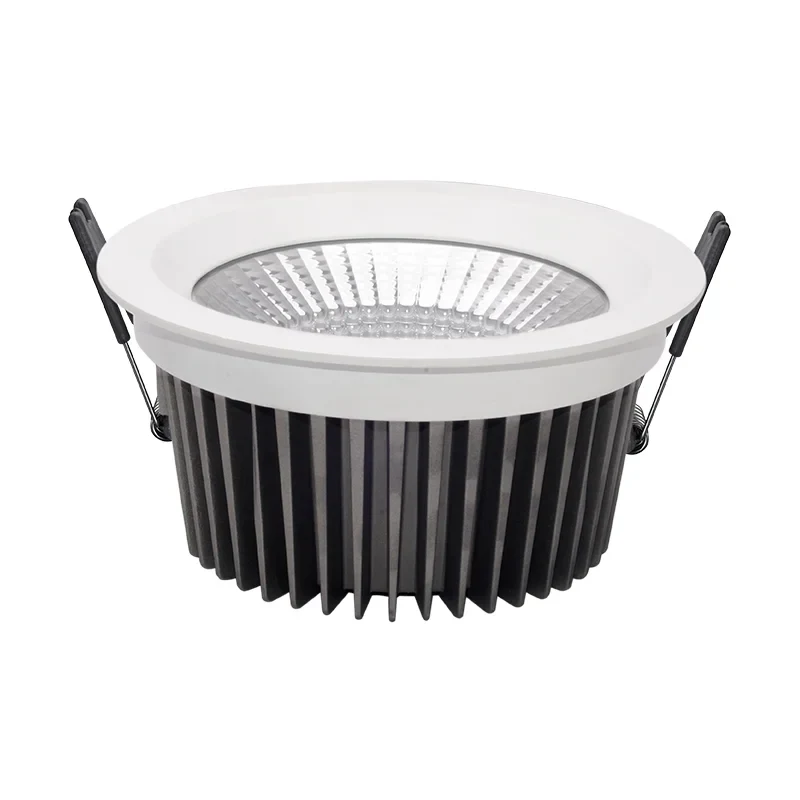

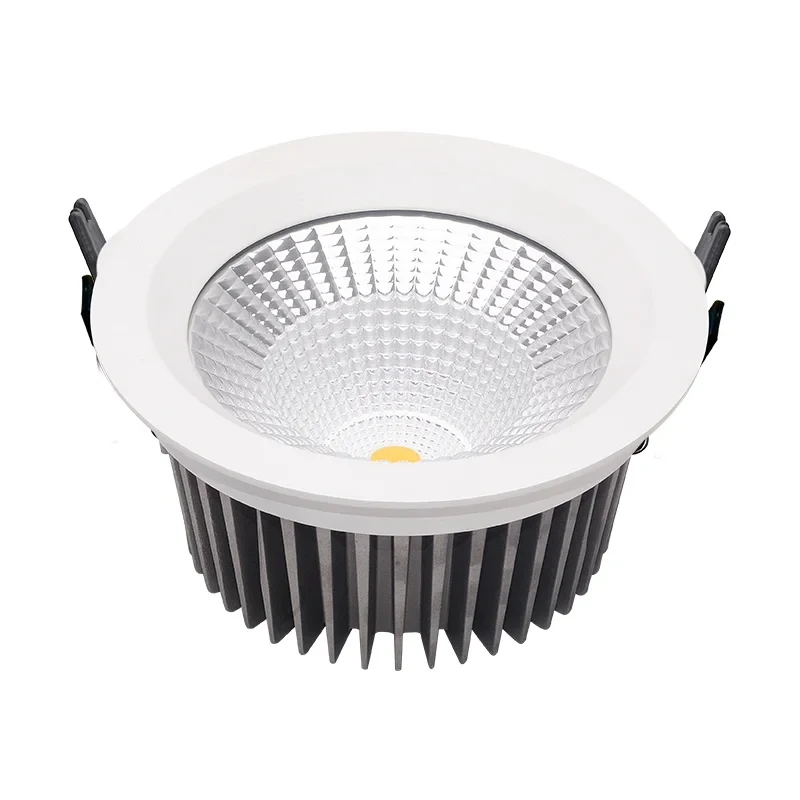

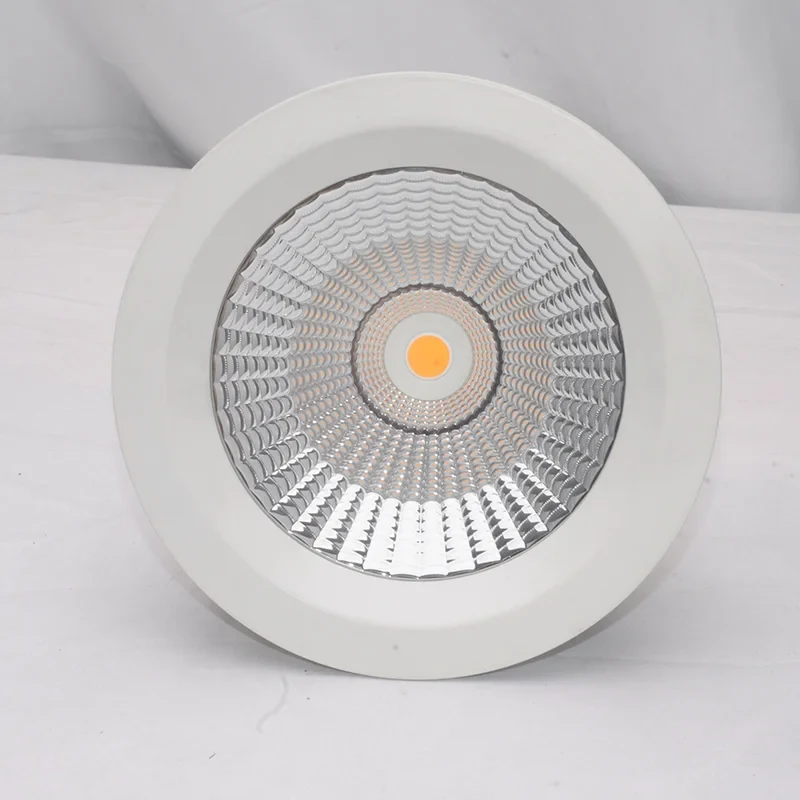

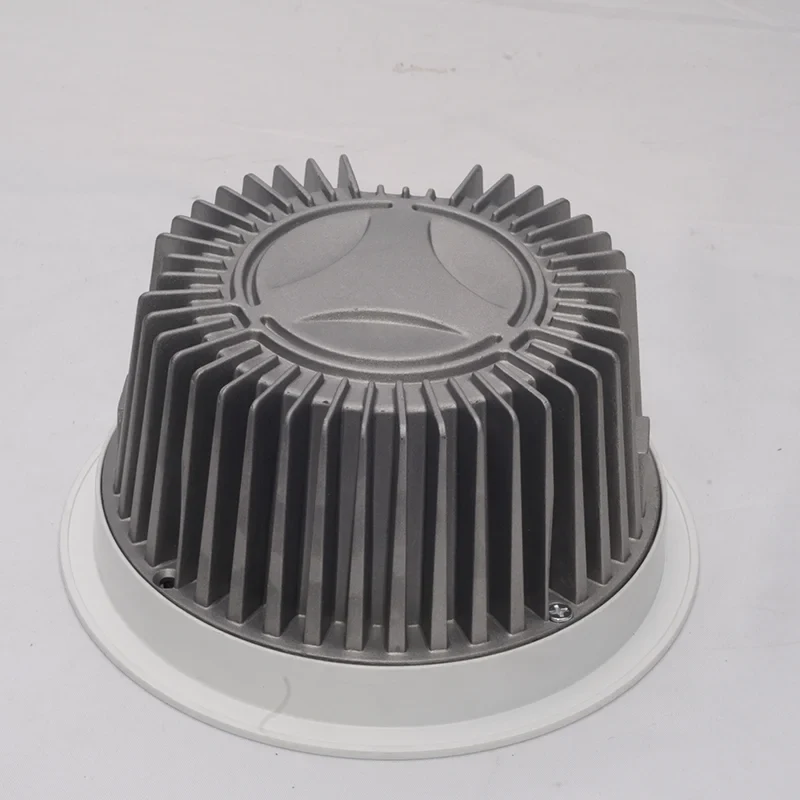

MSR-KDL Series Downlight

Description

• IP20 / IP44 / IP 65 for optional.
• 3CCT Switchable WW-NW-CW.
• Round and square shape for optional.
• External flickering free driver.

Description

• IP20 / IP44 / IP 65 for optional.
• 3CCT Switchable WW-NW-CW.
• Round and square shape for optional.
• External flickering free driver.

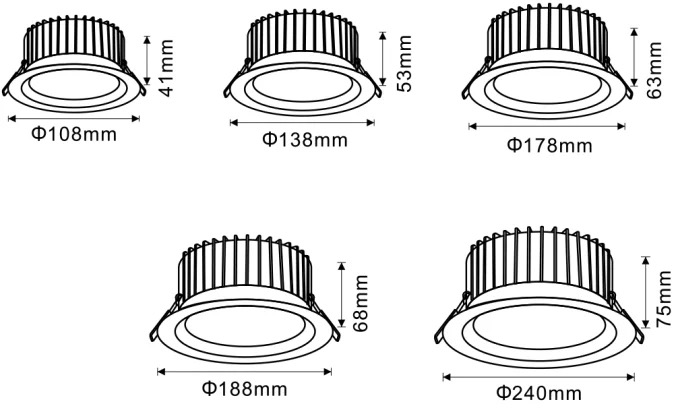

Model	Watt	Beam angle	CRI	Cutout	Size(mm)	Lumen(±10%)	Light Source	Driver
MSR-KDL03-C7W	7W	60°	>80	Ø80mm	108x41mm	650LM	EPISTAR OSRAM	LIFUD PHILIPS OSRAM
MSR-KDL04-C12W	12W	60°	>80	Ø115mm	138x53mm	1100LM	EPISTAR OSRAM	LIFUD PHILIPS OSRAM
MSR-KDL05-C15W	15W	60°	>80	Ø155mm	178x63mm	1350LM	EPISTAR OSRAM	LIFUD PHILIPS OSRAM
MSR-KDL06-C20W	20W	60°	>80	Ø170mm	188x68mm	1800LM	EPISTAR OSRAM	LIFUD PHILIPS OSRAM
MSR-KDL08-C30W	30W	60°	>80	Ø210mm	240x75mm	2700LM	EPISTAR OSRAM	LIFUD PHILIPS OSRAM
