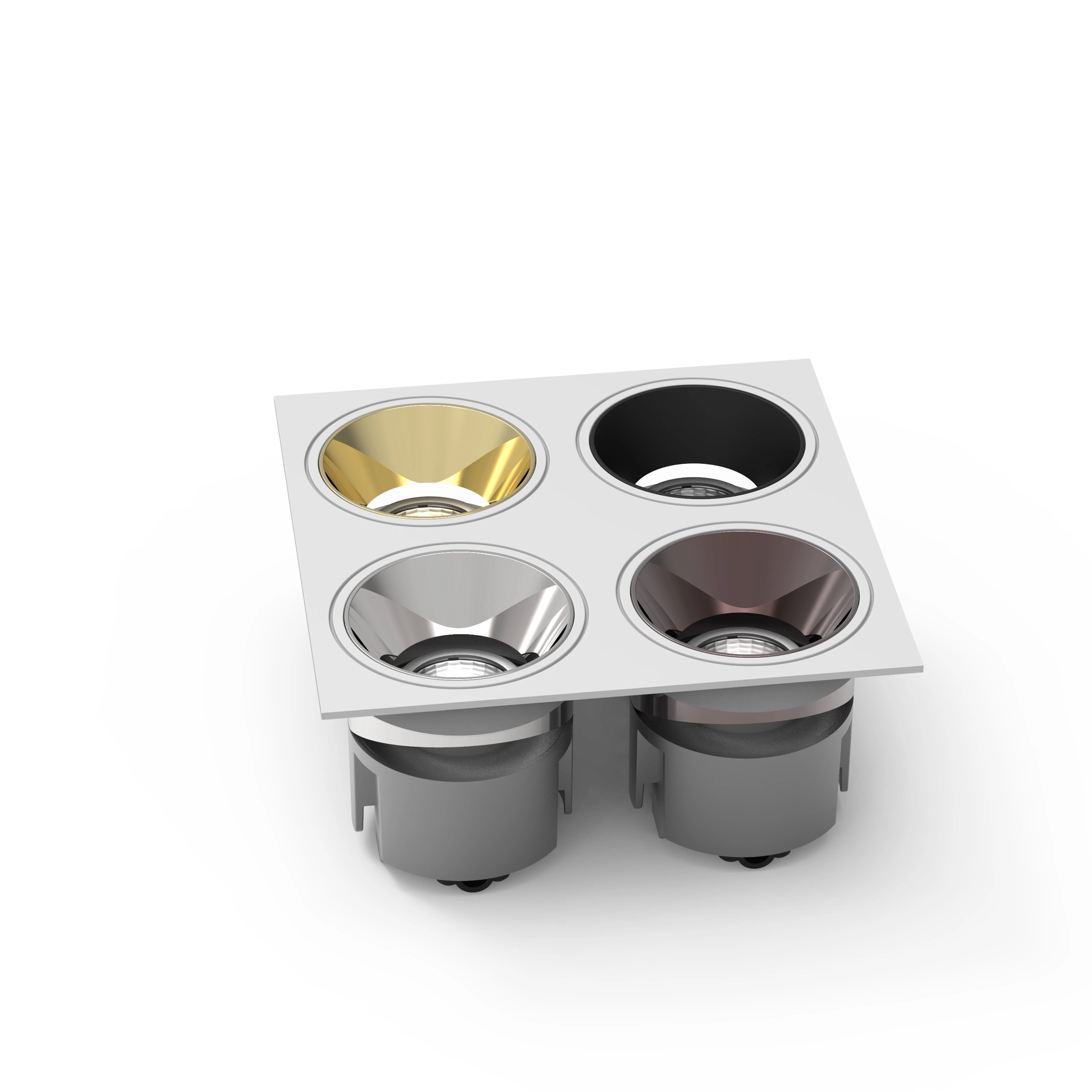

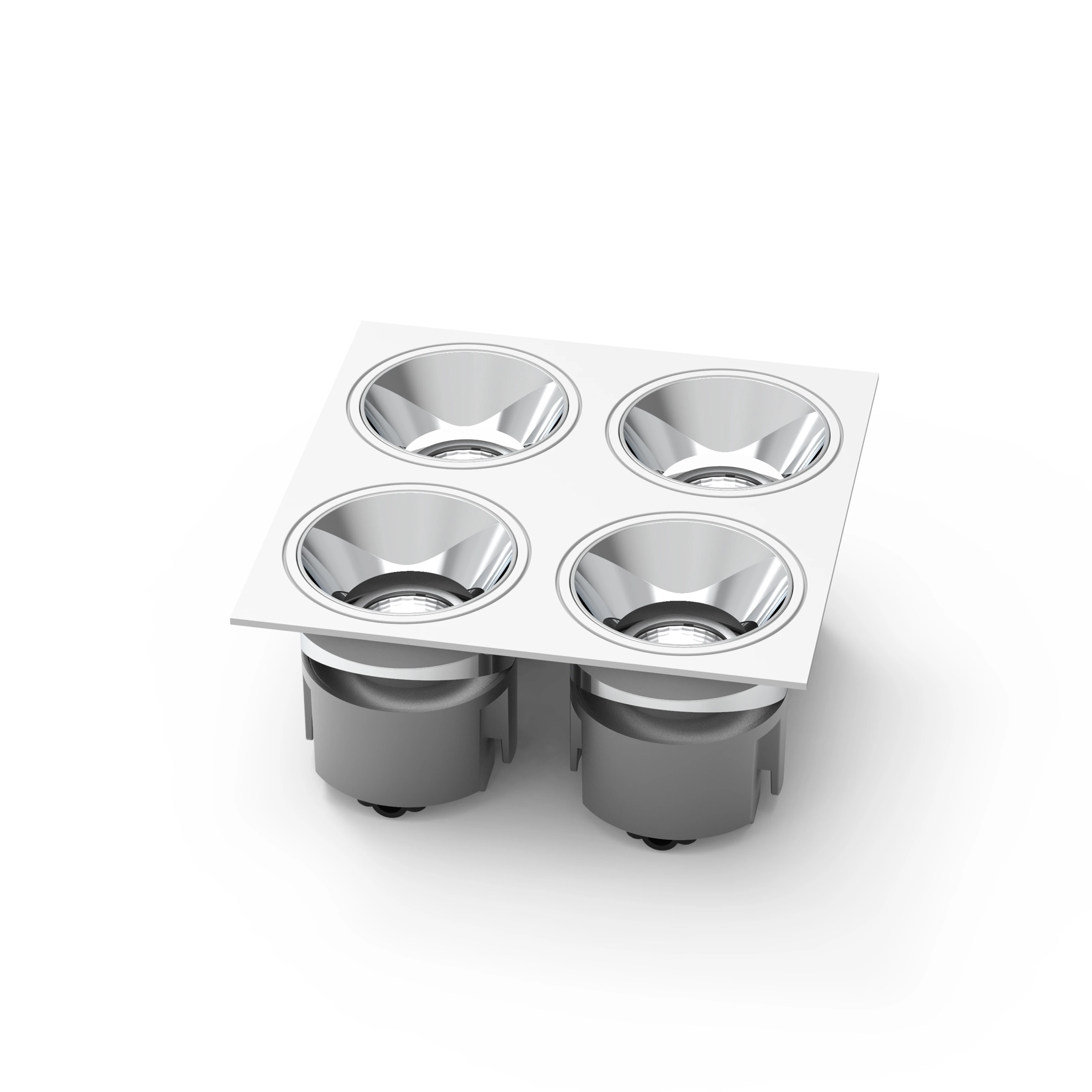

MSR-KCS-S*4 Series Downlight
BestDescription

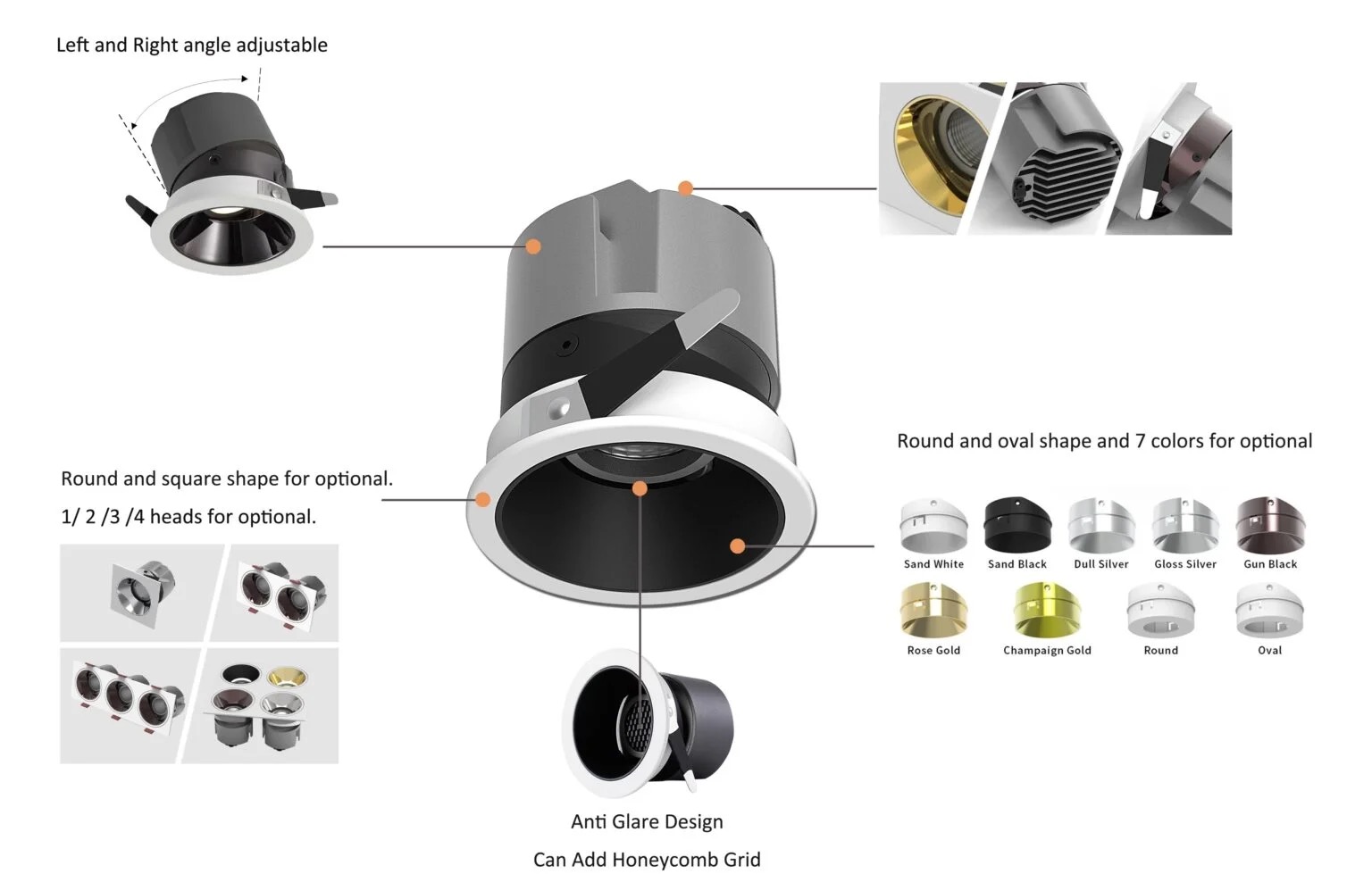

• Group design: 1/2/3/4 heads with round and square shape for options.
• Left and Right angle adjustable, horizontal rotatable 360°
• Round and square shape and 7 colors for optional.
• 3CCT Switchable WW-NW-CW.
• Anti-glare design with honey comb.
• External flickering free driver.
• Left and Right angle adjustable, horizontal rotatable 360°
• Round and square shape and 7 colors for optional.
• 3CCT Switchable WW-NW-CW.
• Anti-glare design with honey comb.
• External flickering free driver.
- Description
• Group design: 1/2/3/4 heads with round and square shape for options.
• Left and Right angle adjustable, horizontal rotatable 360°
• Round and square shape and 7 colors for optional.
• 3CCT Switchable WW-NW-CW.
• Anti-glare design with honey comb.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-KCS060-C7W*4-S | 7W*4 | 15°/24°/36° | >80 | Ø30×130 | 140x140x63mm | 2240LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS075-C12W*4-S | 20W*4 | 15°/24°/36° | >80 | Ø160×160 | 178x178x77mm | 3840LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS075-C20W*4-S | 25W*4 | 15°/24°/36° | >80 | Ø160×160 | 178x178x93mm | 6400LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS100-C25W*4-S | 30W*4 | 15°/24°/36° | >80 | Ø210×210 | 23x0230x99mm | 8000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS120-C35W*4-S | 35W*4 | 15°/24°/36° | >80 | Ø250×250 | 270x270x123mm | 11200LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
