MSR-KCS-S*2 Series Downlight
BestDescription

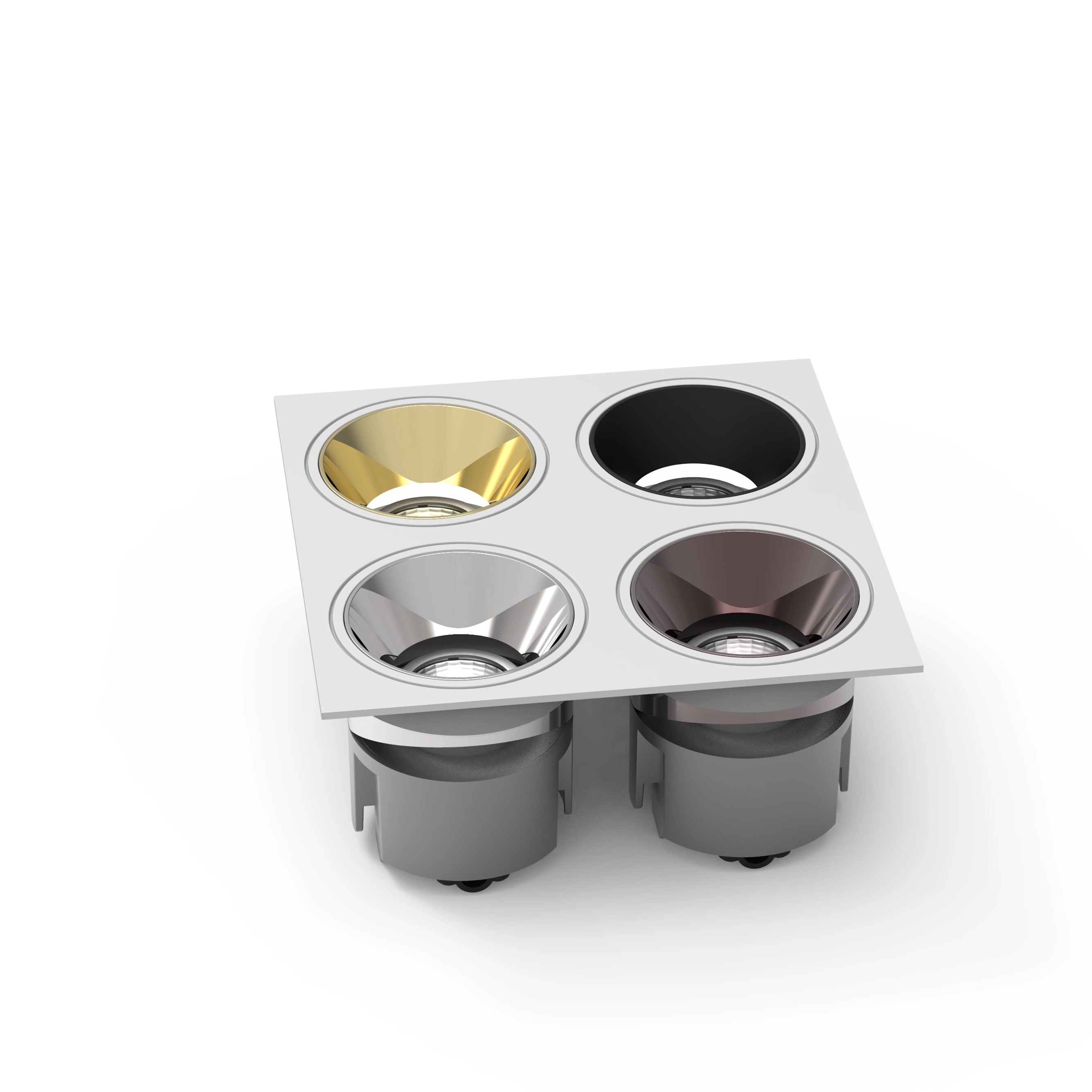

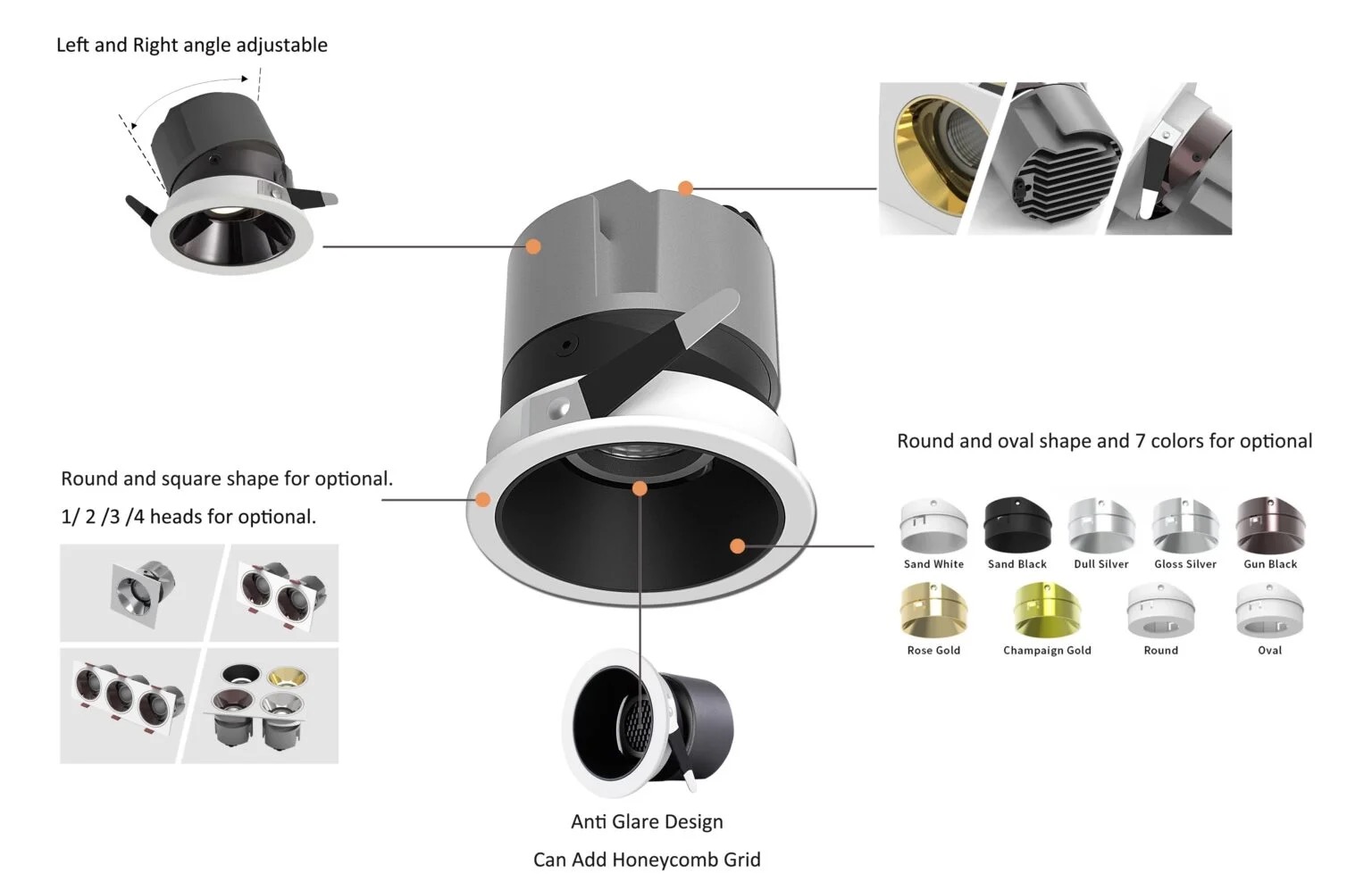

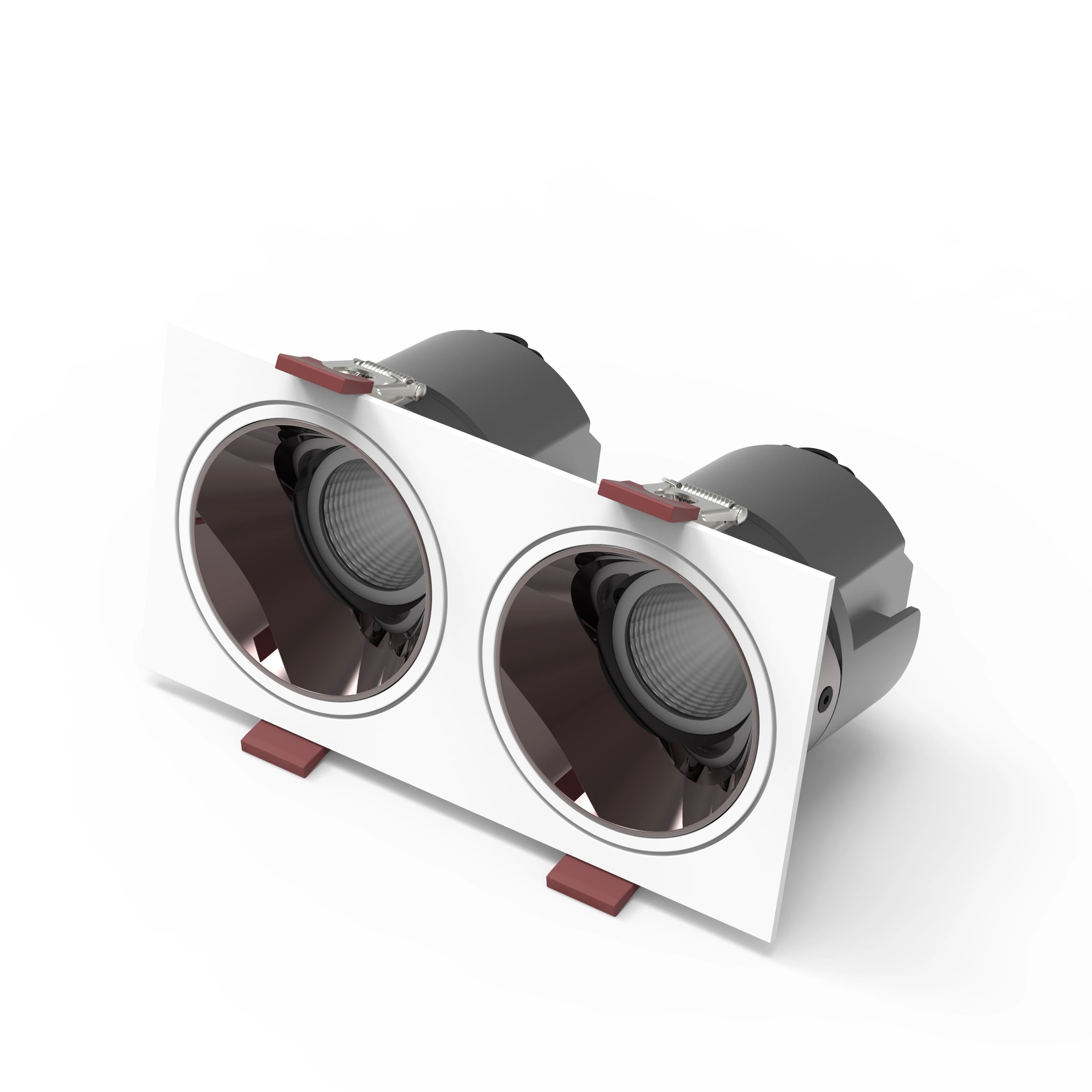

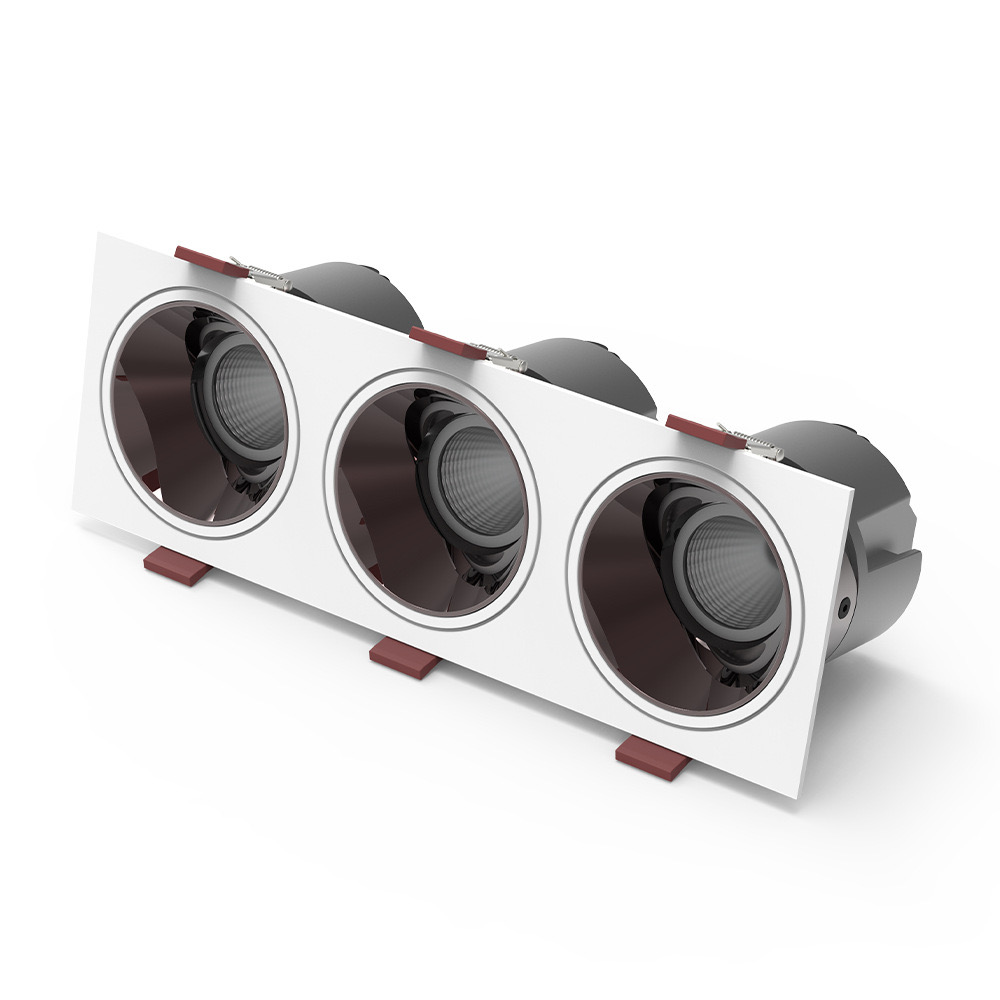

• Group design: 1/2/3/4 heads with round and square shape for options.
• Left and Right angle adjustable, horizontal rotatable 360°
• Round and square shape and 7 colors for optional.
• 3CCT Switchable WW-NW-CW.
• Anti-glare design with honey comb.
• External flickering free driver.
• Left and Right angle adjustable, horizontal rotatable 360°
• Round and square shape and 7 colors for optional.
• 3CCT Switchable WW-NW-CW.
• Anti-glare design with honey comb.
• External flickering free driver.
- Description
• Group design: 1/2/3/4 heads with round and square shape for options.
• Left and Right angle adjustable, horizontal rotatable 360°
• Round and square shape and 7 colors for optional.
• 3CCT Switchable WW-NW-CW.
• Anti-glare design with honey comb.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-KCS060-C7W*2-S | 7W*2 | 15°/24°/36° | >80 | Ø125×60 | 140x70x63mm | 1120LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS075-C12W*2-S | 20W*2 | 15°/24°/36° | >80 | Ø155×75 | 175x92x77mm | 1920LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS075-C20W*2-S | 25W*2 | 15°/24°/36° | >80 | Ø155×75 | 175x92x93mm | 3200LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS100-C25W*2-S | 30W*2 | 15°/24°/36° | >80 | Ø205×100 | 230x120x99mm | 4000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-KCS120-C35W*2-S | 35W*2 | 15°/24°/36° | >80 | Ø250×120 | 270x140x123mm | 5600LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
