MSR-HSDL Series Downlight
New BestDescription

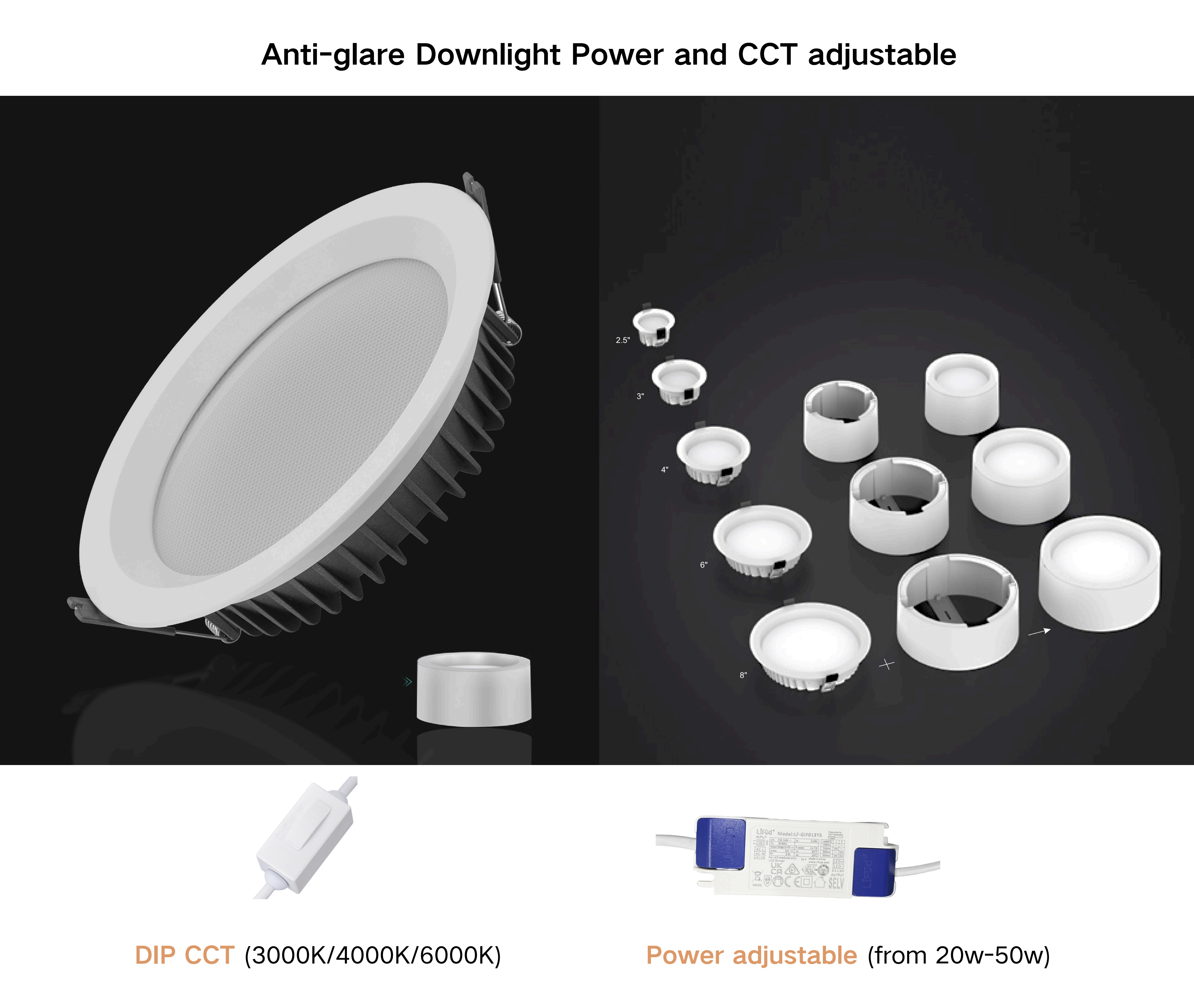

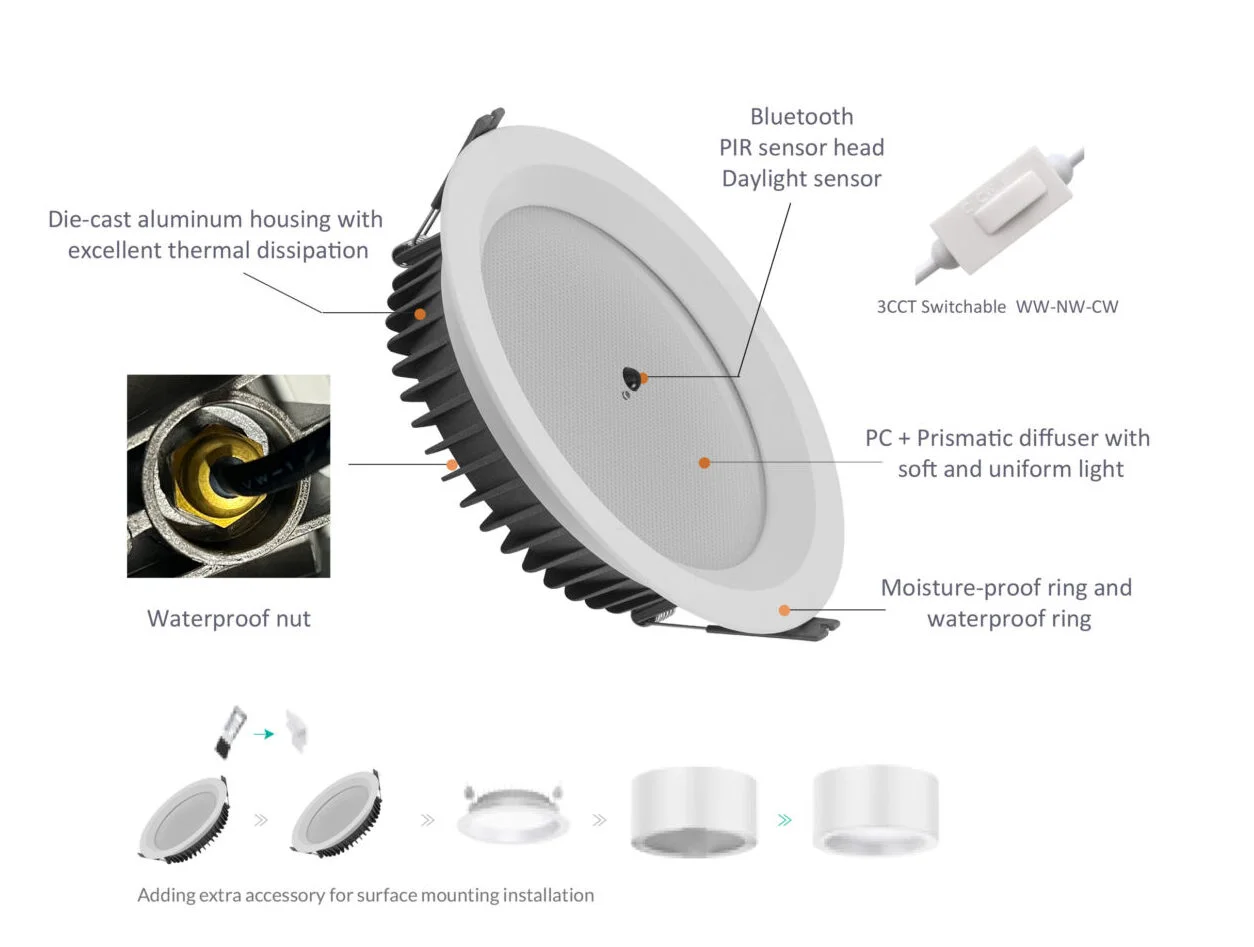

• Anti-glare downlight with PC + Prismatic diffuser with soft and uniform light.
• IP20 / IP44 / IP 65 for optional.
• Completed sizes inch, 4inch, 5inch, 6inch, 8inch.
• 3CCT Switchable WW-NW-CW.
• DIY to be surface mounted downlight
• External flickering free driver.
• IP20 / IP44 / IP 65 for optional.
• Completed sizes inch, 4inch, 5inch, 6inch, 8inch.
• 3CCT Switchable WW-NW-CW.
• DIY to be surface mounted downlight
• External flickering free driver.
- Description
• Anti-glare downlight with PC + Prismatic diffuser with soft and uniform light.
• IP20 / IP44 / IP 65 for optional.
• Completed sizes inch, 4inch, 5inch, 6inch, 8inch.
• 3CCT Switchable WW-NW-CW.
• DIY to be surface mounted downlight
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout(mm) | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-HSDL03S-7W | 7W | 100° | >80 | Ø80mm | 108x37mm | 650LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-HSDL04S-12W | 12W | 100° | >80 | Ø115mm | 138x40mm | 1100LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-HSDL05S-15W | 15W | 100° | >80 | Ø155mm | 178x45mm | 1350LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-HSDL06S-20W | 20W | 100° | >80 | Ø170mm | 188x45mm | 1800LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-HSDL08S-30W | 30W | 100° | >80 | Ø210mm | 240x50mm | 2700LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-HSDL08S-40W | 40W | 100° | >80 | Ø210mm | 240x50mm | 3600LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-HSDL08S-50W | 50W | 100° | >80 | Ø210mm | 240x50mm | 4500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
