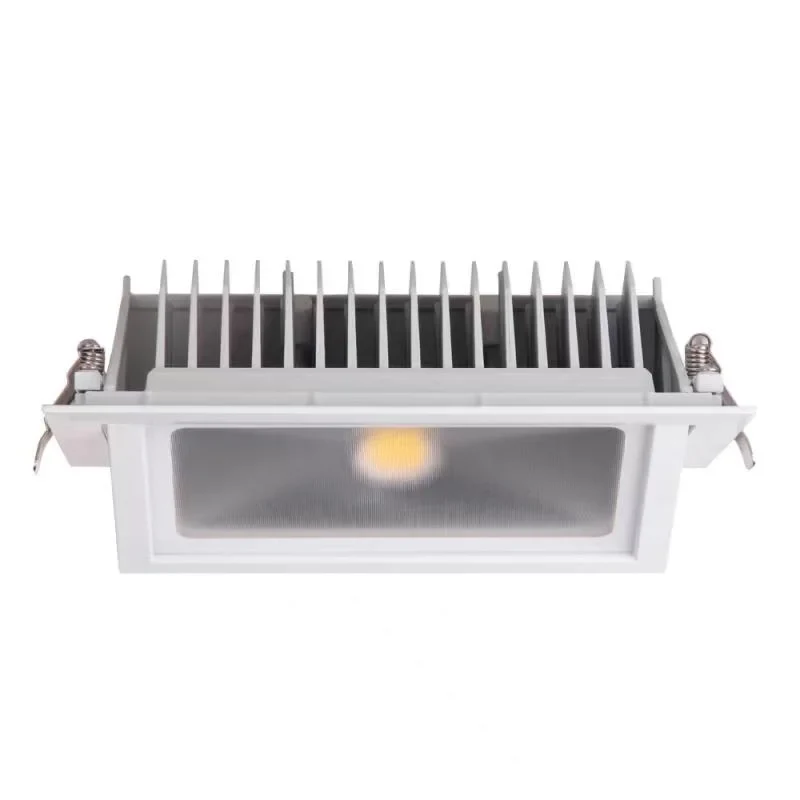

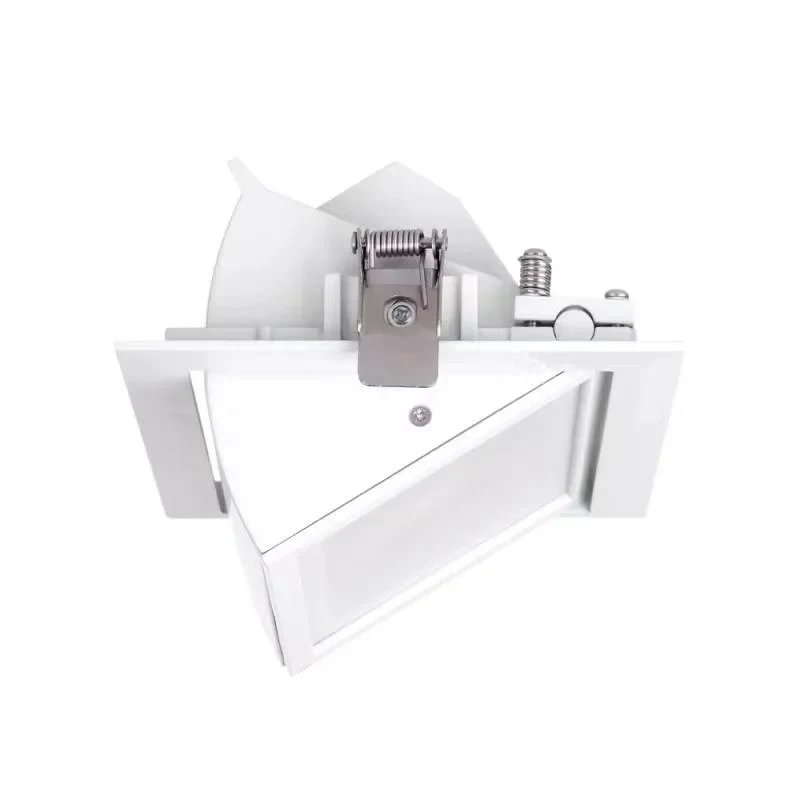

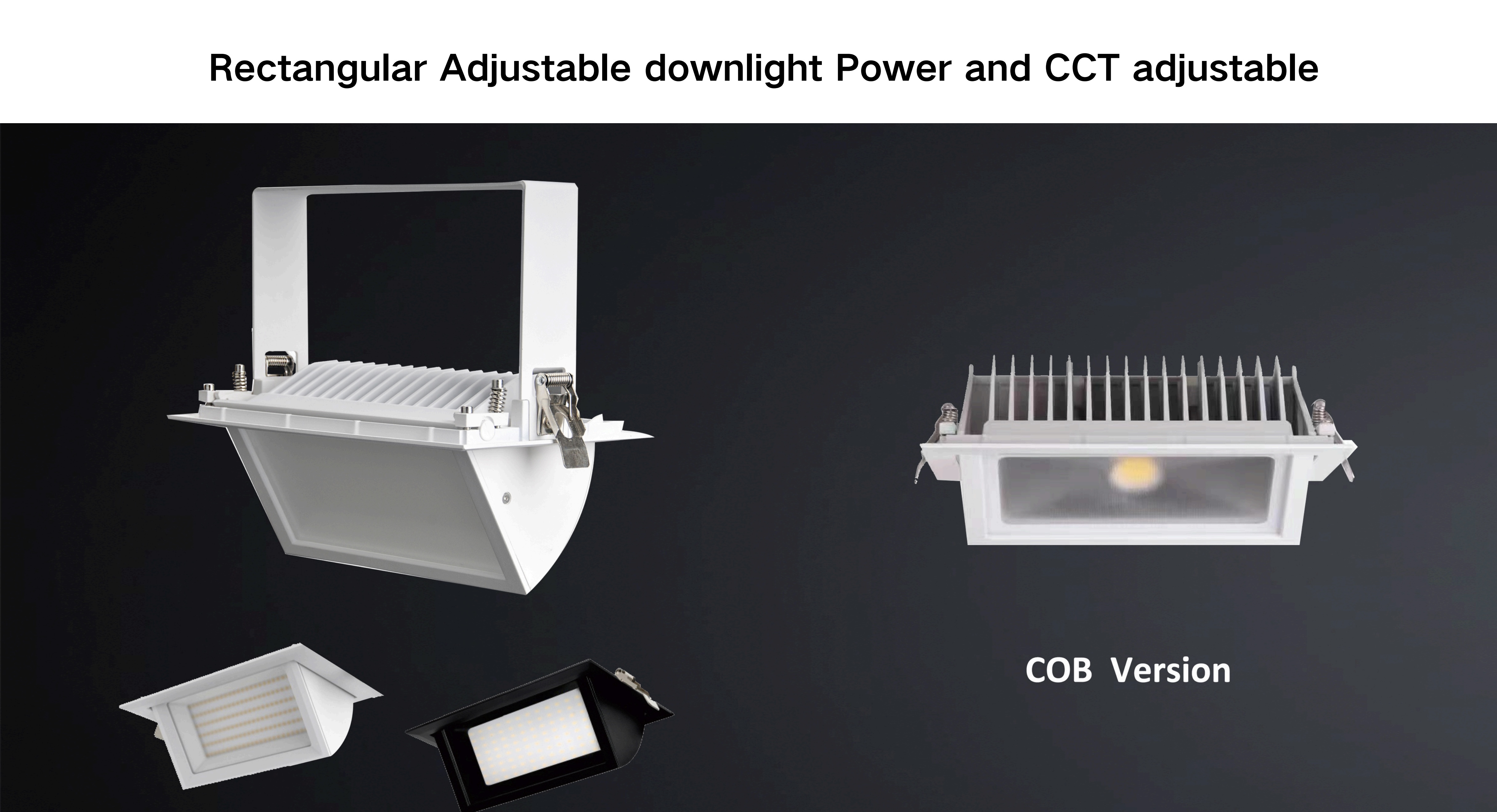

MSR-FDL Series Rectangular Downlight
BestDescription

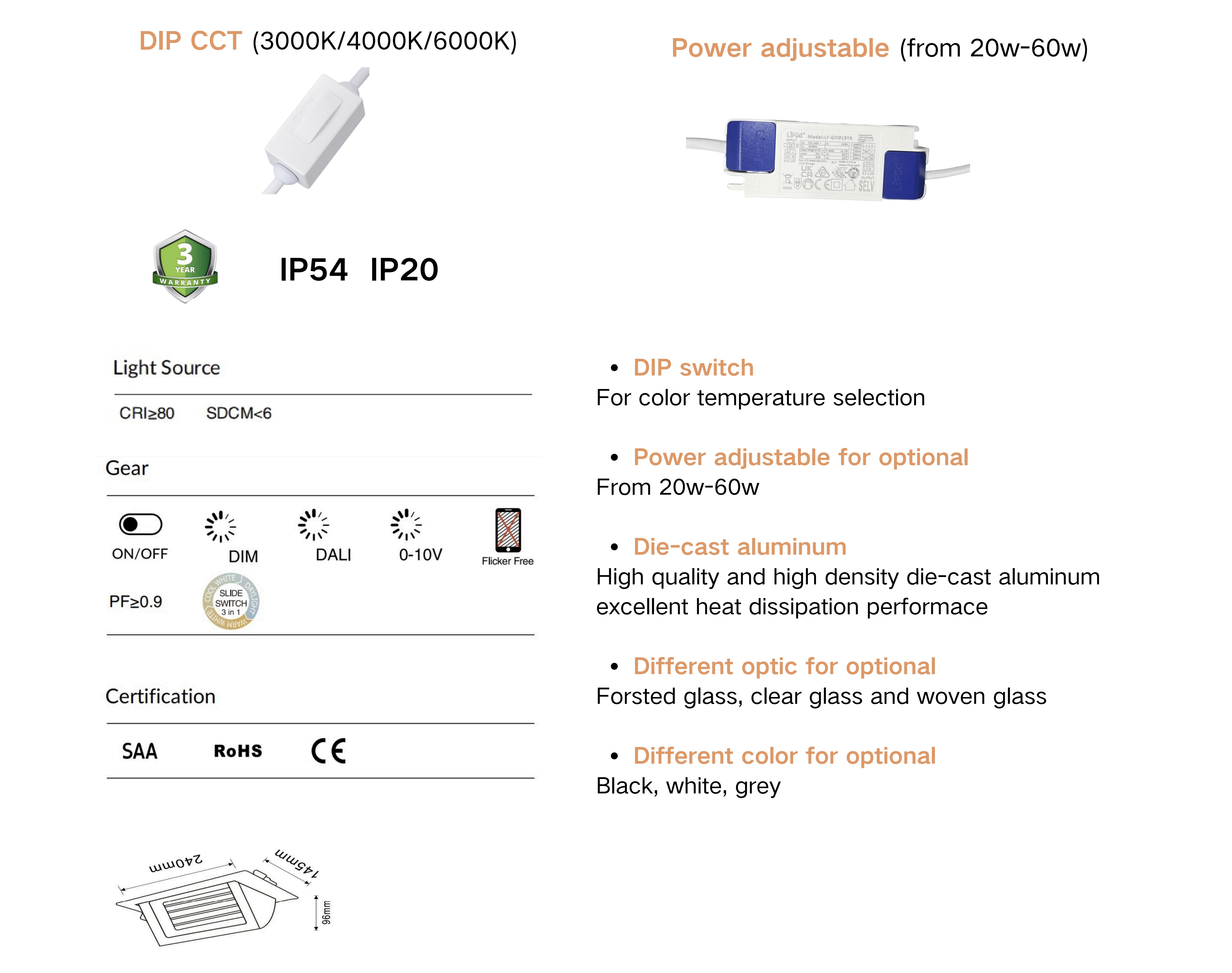

• 3CCT Switchable WW-NW-CW.
• Completed wattage 20W 30W 40W 50W 60W.
• Power changeable from 20W to 60W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
• Completed wattage 20W 30W 40W 50W 60W.
• Power changeable from 20W to 60W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
- Description
• 3CCT Switchable WW-NW-CW.
• Completed wattage 20W 30W 40W 50W 60W.
• Power changeable from 20W to 60W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout(mm) | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-FDL-S20W | 20W | 100° | >80 | Ø215x130mm | 240x145x96mm | 2500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-FDL-S30W | 30W | 100° | >80 | Ø215x130mm | 240x145x96mm | 3750LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-FDL-S40W | 40W | 100° | >80 | Ø215x130mm | 240x145x96mm | 5000LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-FDL-S50W | 50W | 100° | >80 | Ø215x130mm | 240x145x96mm | 6250LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-FDL-S60W | 60W | 100° | >80 | Ø215x130mm | 240x145x96mm | 7500LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
