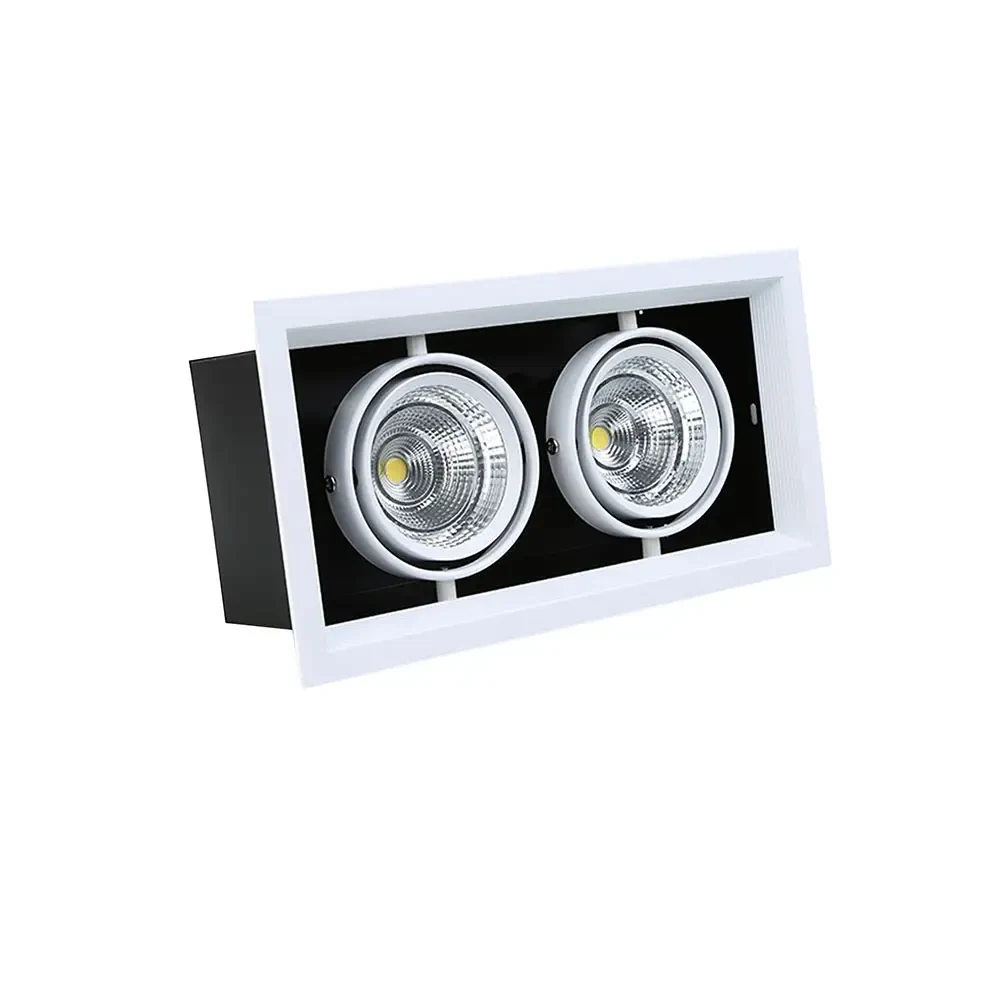

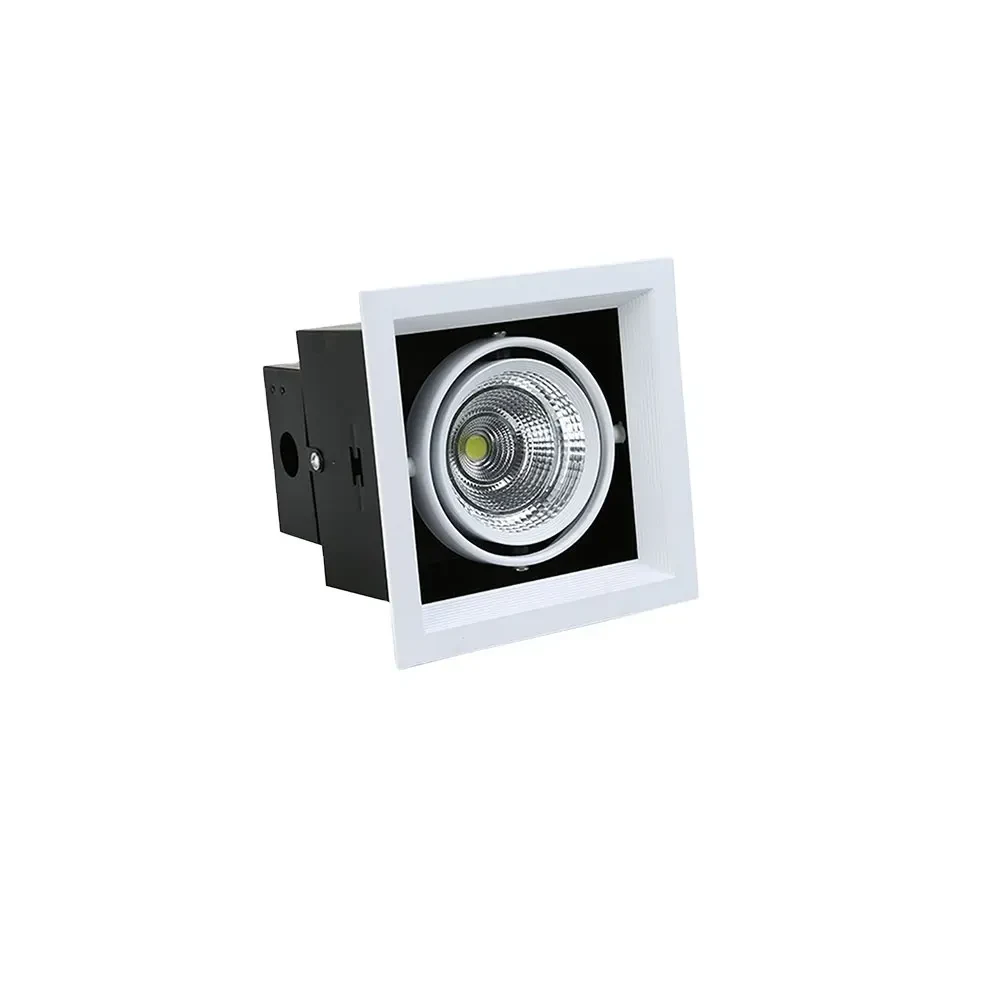

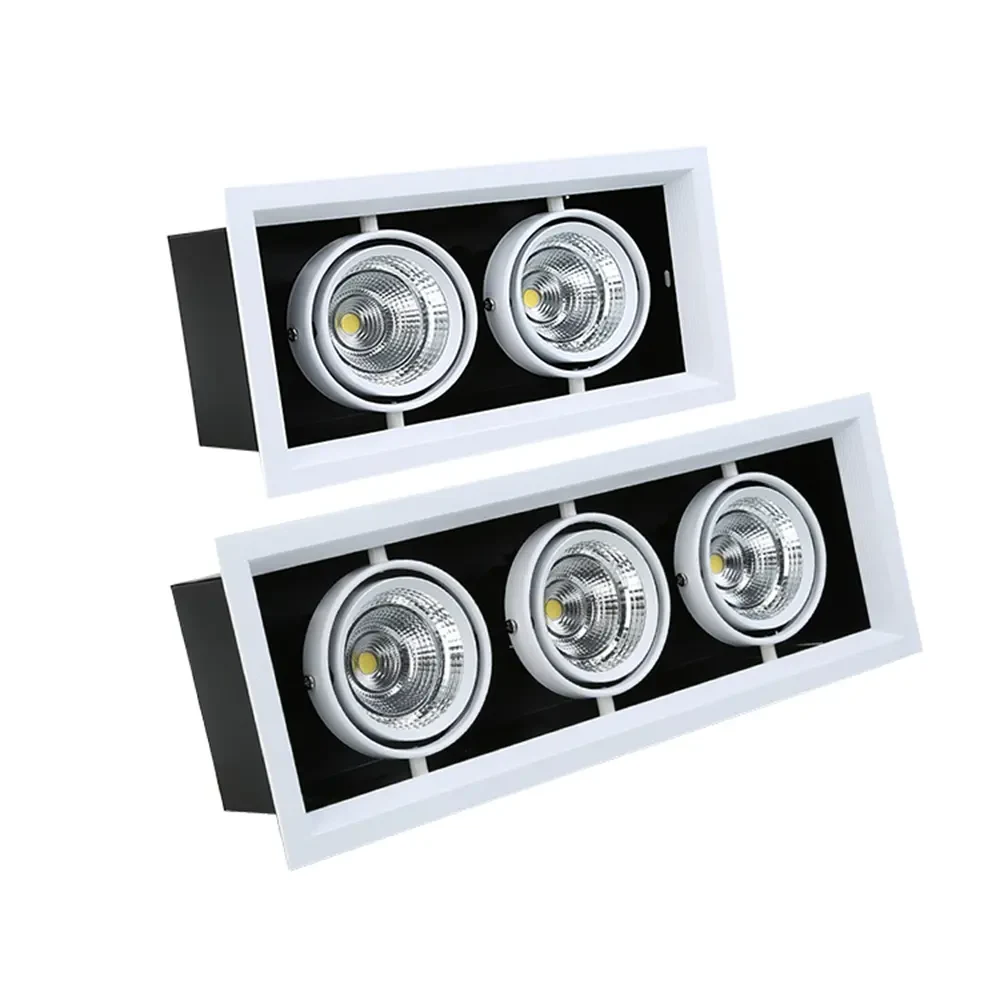

MSR-DGL Series Grile Light
BestDescription
• Die-cast aluminum housing with excellent thermal dissipation.
• Optical Lens :Precise light control, uniform and soft lighting, with anti-glare function.
• Multiple beam angle options : 12º/24º/36º/40º.
• Dimming way: non-dim, traic dim, 0-10V, DALI.

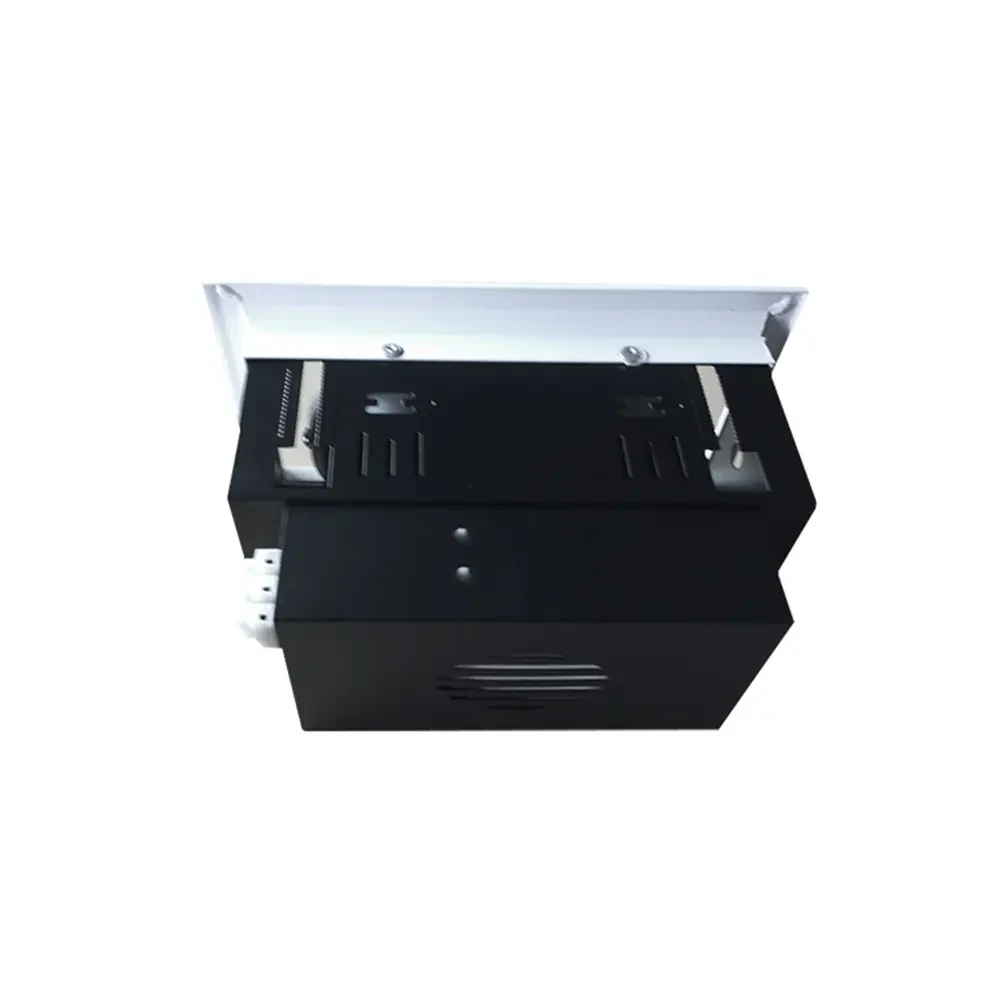

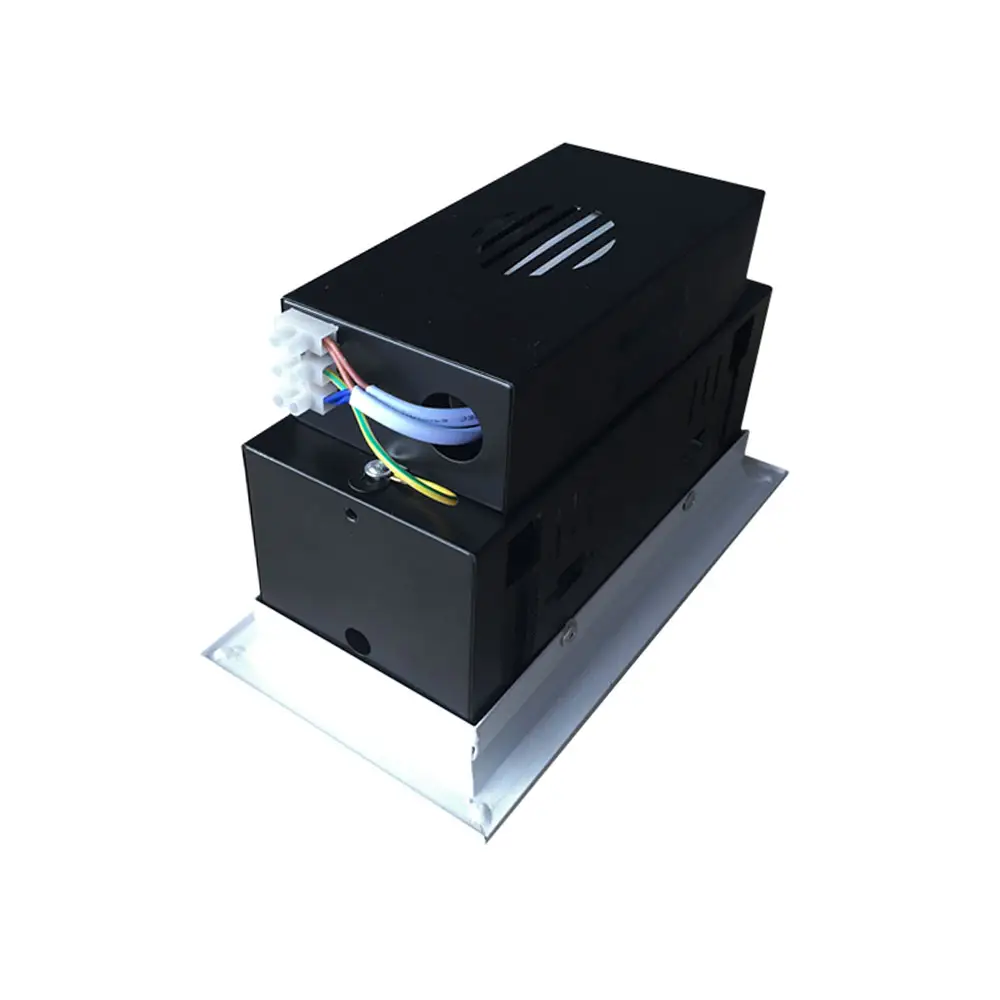

• External flickering free driver.
• Optical Lens :Precise light control, uniform and soft lighting, with anti-glare function.
• Multiple beam angle options : 12º/24º/36º/40º.
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
- Description
• Die-cast aluminum housing with excellent thermal dissipation.
• Optical Lens :Precise light control, uniform and soft lighting, with anti-glare function.
• Multiple beam angle options : 12º/24º/36º/40º.
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-DGL-7W*3 | 7w*3 | 12º/36º | >80 | 285x100mm | 306x120mm | 1890LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-DGL-12W*3 | 12w*3 | 12º/36º | >80 | 285x100mm | 306x120mm | 3240LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-DGL-15W*3 | 15w*3 | 12º/36º | >80 | 285x100mm | 306x120mm | 4050LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-DGL-20W*3 | 20w*3 | 12º/36º | >80 | 405x145mm | 425x145mm | 5400LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-DGL-25W*3 | 25w*3 | 12º/36º | >80 | 405x145mm | 425x145mm | 6750LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-DGL-30W*3 | 30w*3 | 12º/36º | >80 | 480x165mm | 480x165mm | 8100LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
