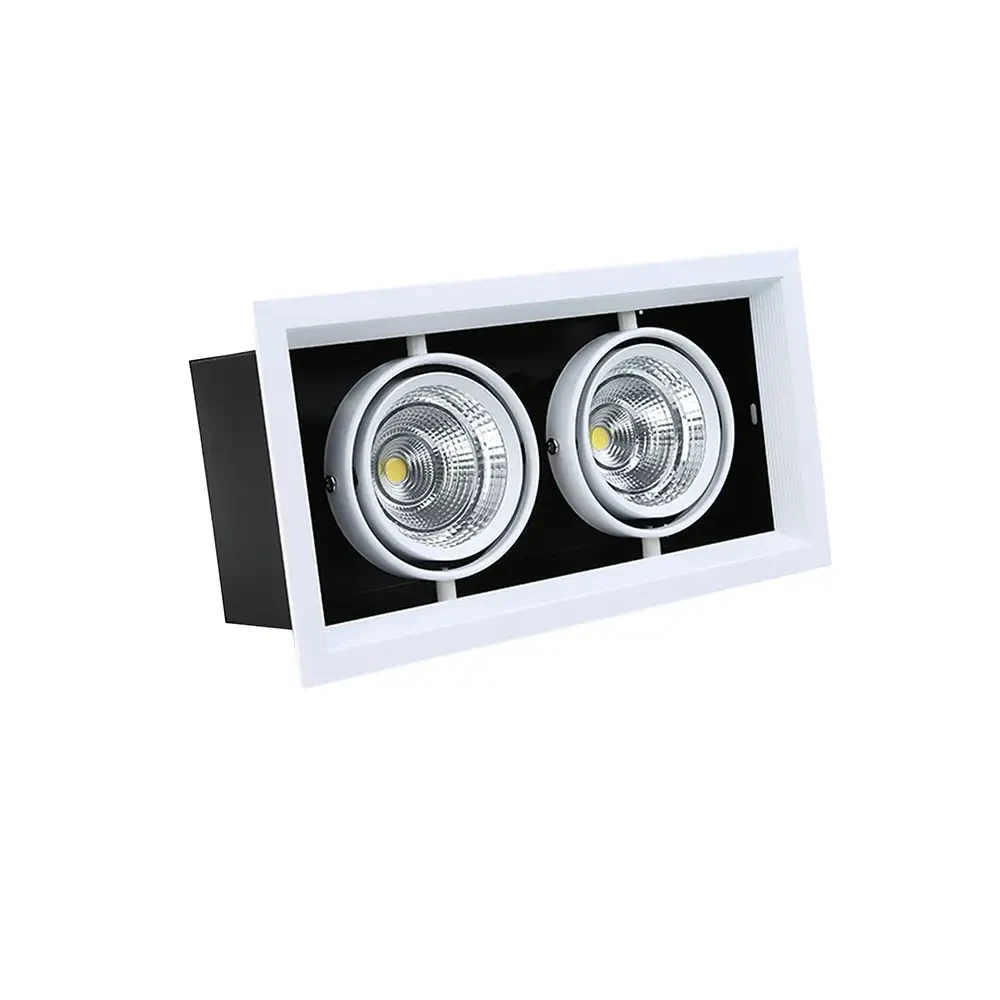

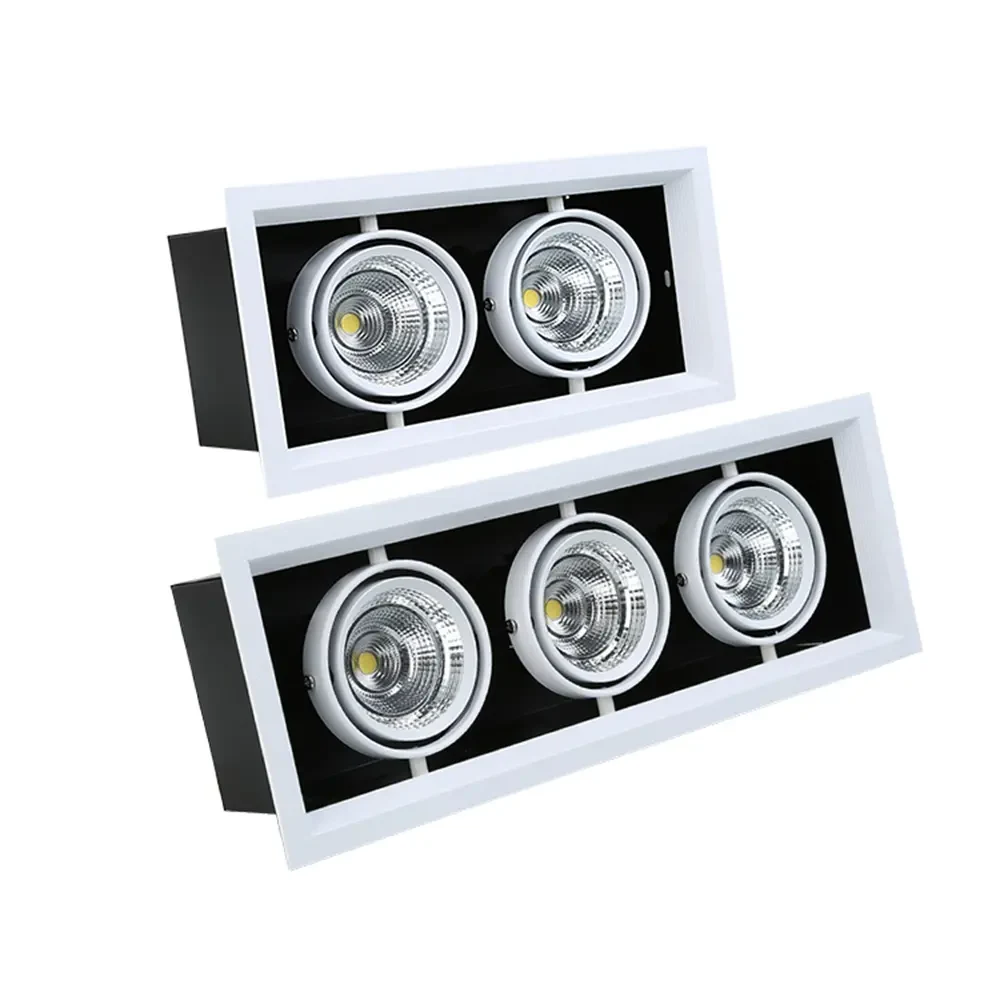

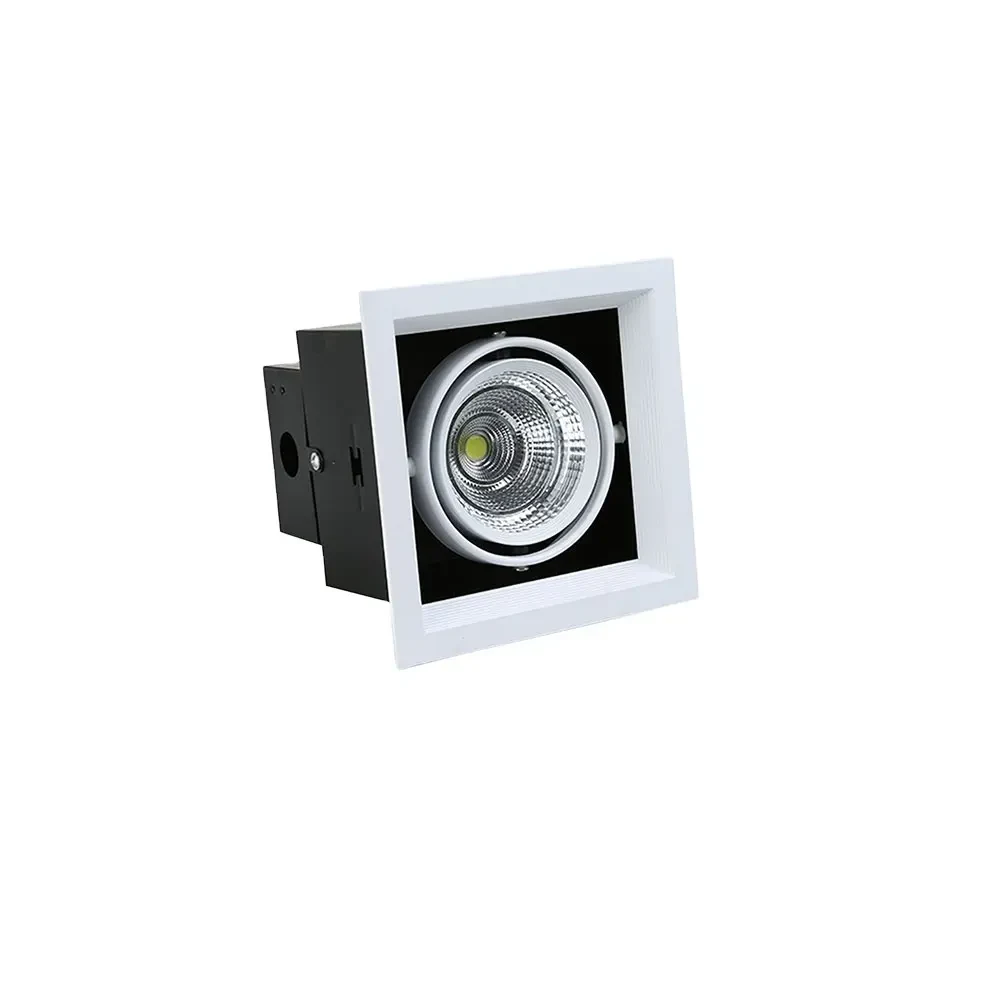

MSR-BGL Series Grill light
BestDescription
• Die-cast aluminum housing with excellent thermal dissipation.
• Optical Lens :Precise light control, uniform and soft lighting, with anti-glare function.
• Multiple beam angle options : 12º/24º/36º/40º.
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
• Optical Lens :Precise light control, uniform and soft lighting, with anti-glare function.
• Multiple beam angle options : 12º/24º/36º/40º.
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
- Description
• Die-cast aluminum housing with excellent thermal dissipation.
• Optical Lens :Precise light control, uniform and soft lighting, with anti-glare function.
• Multiple beam angle options : 12º/24º/36º/40º.
• Dimming way: non-dim, traic dim, 0-10V, DALI.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-BGL-7W | 7w | 12º/36º | >80 | 100x100mm | 120x120mm | 1190LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-BGL-12W | 12w | 12º/36º | >80 | 100x100mm | 120x120mm | 1700LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-BGL-15W | 15w | 12º/36º | >80 | 100x100mm | 120x120mm | 2550LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-BGL-20W | 20w | 12º/36º | >80 | 145x145mm | 165x165mm | 3060LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-BGL-25W | 25w | 12º/36º | >80 | 145x145mm | 165x165mm | 3400LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
| MSR-BGL-30W | 30w | 12º/36º | >80 | 165x165mm | 185x 185mm | 4250LM | EPISTAR OSRAM | LIFUD PHILIPS OSRAM |
