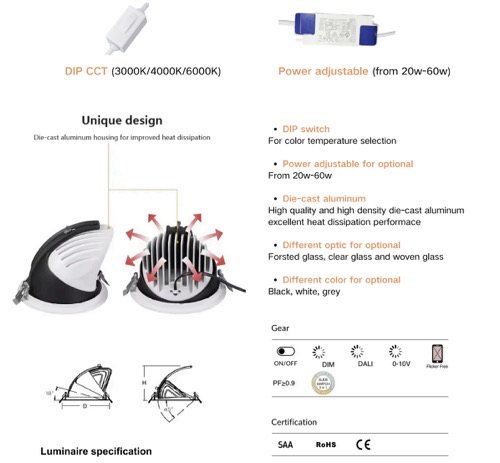

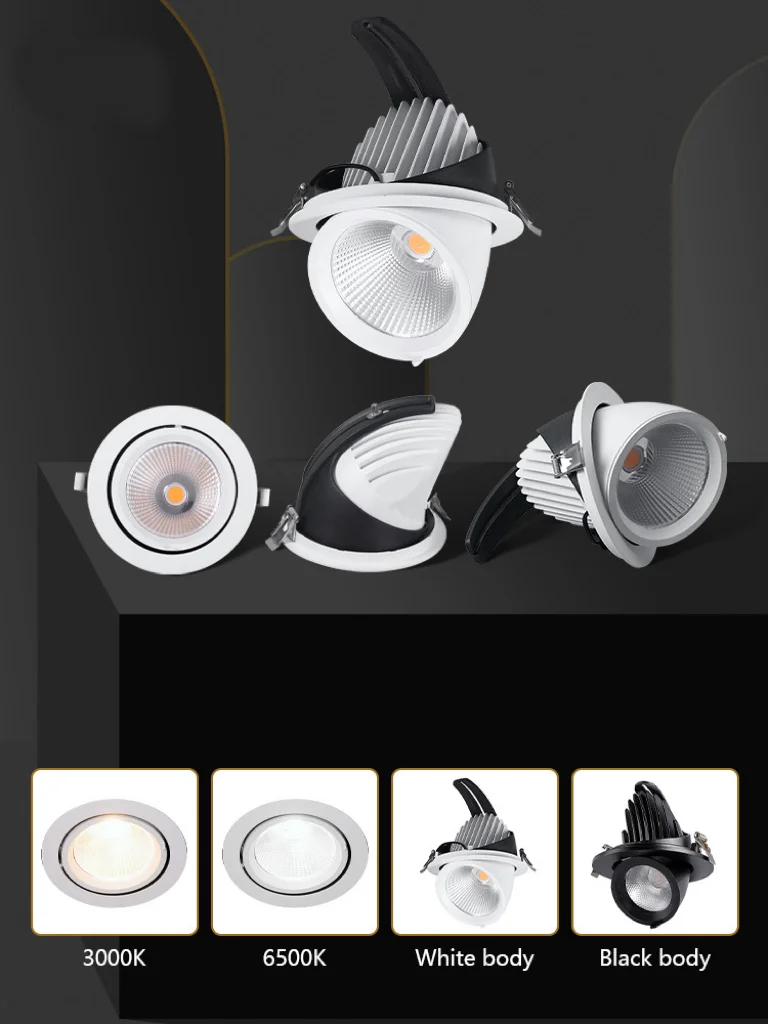

MSR-ABDL Series Adjustable Downlight
New Best- Description
• 3CCT Switchable WW-NW-CW.
• Completed wattage 10W -60W.
• Power changeable from 10W to 60W.
• Clear glass, frosted glass, PC cover for optional.
• Dimming way: non-dim, triac dim, 0-10V,DALI.
• External flickering free driver.
| Model | Watt | Beam angle | CRI | Cutout Size(mm) | Size(mm) | Lumen(±10%) | Light Source | Driver |
| MSR-ABDL75-C12W | 12W | 60° | >90 | 75mm | 90x60mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-ABDL95-C15W | 15W | 60° | >90 | 175mm | 102x80mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-ABDL110-25W | 25W | 60° | >90 | 175mm | 125x108mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-ABDL125-35W | 35W | 60° | >90 | 120mm | 140x115mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-ABDL145-40W | 40W | 60° | >90 | 175mm | 160x135mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
| MSR-ABDL175-60W | 60W | 60° | >90 | 175mm | 190x160mm | 120lm/w | EPISTAR OSRAM | LIFUD PHILIPS |
